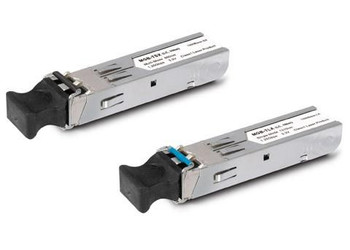

Planet MGB-LA20 Mini GBIC WDM TX1310 Module MGB-LA20

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40? to 75?) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.

Features



Hot-Plug support



Yes


Plug and Play



Yes


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Depth (package,cm)



41 cm


Gross Weight (Package, kg)



0.06 kg


Height (package,cm)



28 cm


Width (package,cm)



31.5 cm


Performance



Fiber optic connector



LC


Harmonized System (HS) code



85369010


Interface type



SFP


Maximum data transfer rate



1000 Mbit/s


Maximum transfer distance



20000 m


Multi-mode fiber (MMF) supported



No


Networking standards



IEEE 802.3ah


SFP transceiver standard



BX


SFP transceiver type



Fiber optic


Single-mode fiber (SMF) supported



Yes


Wavelength



1310 nm


Wavelength-division multiplexing (WDM)



Yes


Product dimensions



Net Weight (Product, kg)



0.01 kg


Product Depth



1.34 cm


Product Height



1.5 cm


Product Width



7 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
