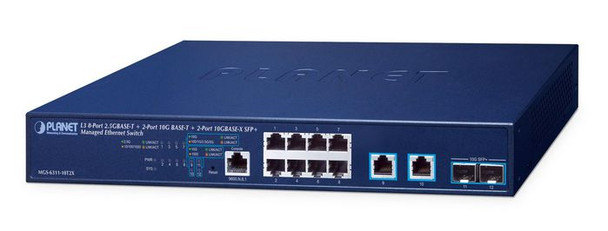

Planet MGS-6311-10T2X Layer 3 8-Port 2.5GBASE-T + MGS-6311-10T2X

Perfect Managed Multigigabit Ethernet Switch with L3/L2 Switching and Security

PLANET MGS-6311-10T2X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 8 10/100/1000/2500BASE-T copper ports, 2 100/1G/2.5G/5G/10GBASE-T copper ports and 2 extra 1G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.

The MGS-6311-10T2X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10Gbps interfaces, it can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful network security features make the MGS-6311-10T2X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.


2.5Gbps Capability for Diversified Bandwidth Applications

With the terminal access rates of 802.11ac/ax wireless APs reaching as high as 1.2Gbps to 3.6Gbps, Gigabit ports have been unable to satisfy the demand. The MGS-6311-10T2X is a versatile networking solution featuring eight 2.5Gbps RJ45 copper ports, enabling seamless connectivity expansion. With its impressive 2.5Gbps capability, it effortlessly handles bandwidth-intensive applications and ensures efficient data delivery to 802.11ac/ax wireless access points.


10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Network Extension

PLANET MGS-6311-10T2X has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy.

The fiber-optic 10GBASE-X SFP+ interfaces of the MGS-6311-10T2X support dual speeds, 10GBASE-SR/LR and 1000BASE-SX/LX , meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.


Redundant Ring, Fast Recovery for Critical Network Applications

The MGS-6311-10T2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer�s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation.


Layer 3 Routing Support

The MGS-6311-10T2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

- The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
- The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.


Strong Multicast

The MGS-6311-10T2X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the MGS-6311-10T2X great for any robust networking.


Full IPv6 Support

The MGS-6311-10T2X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don�t need to replace the network facilities when the IPv6 FTTx edge network is built.


Robust Layer 2 Features

The MGS-6311-10T2X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the MGS-6311-10T2X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 64 groups for trunking with a maximum of 8 ports for each group.


Excellent Layer 2 to Layer 4 Traffic Control

The MGS-6311-10T2X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.


Powerful Network Security

The MGS-6311-10T2X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based, MAC-based and web-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.


Advanced IP Network Protection

The MGS-6311-10T2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.


Efficient and Secure Management

For efficient management, the MGS-6311-10T2X is equipped with console, Web and SNMP management interfaces.

- With the built-in Web-based management interface, the MGS-6311-10T2X offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the MGS-6311-10T2X offers Cisco-like command and customer doesn�t need to learn new command from these switches
- For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the MGS-6311-10T2X offers secure remote management by supporting SSHv2 connection which encrypts the packet content at each session.


Intelligent SFP Diagnosis Mechanism

The MGS-6311-10T2X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



Learn more: https://www.planet.com.tw/en/product/mgs-6311-10t2x

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Number of IP interfaces



1024


Store-and-forward



Yes


Switching capacity



120 Gbit/s


Throughput



89.28 Mpps


Design



Form factor



1U


LED indicators



Y, Yes


Number of fans



1 fan(s)


Product colour



Blue


Rack mounting



Yes


Management features



Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Traffic classification



Yes


Web-based management



Yes


Network



10G support



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Link aggregation



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



90.7 BTU/h


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 70 �C


Ports & interfaces



10G Ethernet (copper) ports quantity



2


2.5G Ethernet (copper) ports quantity



8


Basic switching RJ-45 Ethernet ports quantity



10


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Fiber optic connector



SFP+


Installed SFP+ modules quantity



2


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Power consumption (typical)



26.6 Watt


Power source



AC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1.953 kg


Product Depth



23 cm


Product Height



4.36 cm


Product Width



33 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP Option 61, DHCP Option 67, DHCP Option 82


SSH/SSL support



Yes


Vendor information



Brand Name


Planet


Warranty



1 Year(s)
