Planet

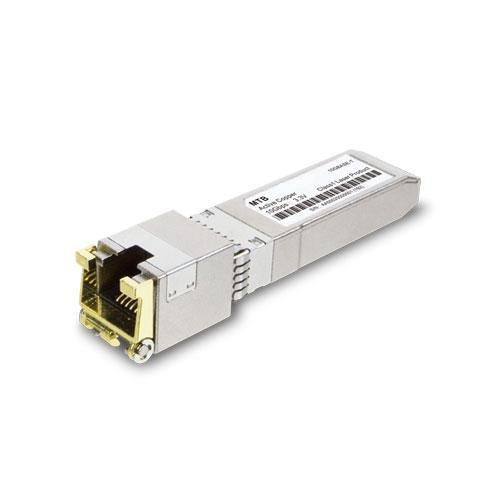

Planet MTB-TLB40 10G SFP+ Fiber Transceiver MTB-TLB40
- UPC:
- 0000000000000
- MPN:
- MTB-TLB40
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The PLANET MTB family of 10G SFP+ fiber optic module that is designed to work with PLANET products with 10G SFP+ interface provides a high-performance 10G Ethernet network for enterprises, telecoms and ISPs. The MTB family is also well applicable for data center cloud computing. The deployment distance can be extended from 300 meters (multi-mode, LC), to up to 60 kilometers (single-mode, LC).
To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET has released the MTB-T series 10GBASE-SR/LR/BX transceivers that can operate reliably in an electrically harsh, climatically demanding, and -40 to 75 degrees C operating temperature environment. The MTB-T series 10GBASE-SR/LR/BX transceivers are definitely easier and faster to connect than the 1000BASE-SX/LX/BX counterpart.
The 10GBASE-T SFP+ Copper Transceiver is specifically designed for high-speed communication links that require 10 gigabit Ethernet over Cat 6a/7 cable. It is the first SFP+ transceiver that offers 10Gb/s communication over fiber optic media.
Interoperability with legacy Ethernet equipment via auto-negotiation is of particular significance as it enables data center to expand without added expenses. The added benefit is that it provides backward compatibility with legacy networks by adopting standard-based technology of the familiar RJ45 connector.
Features
Plug and Play
Yes
Product colour
Metallic
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Package dimensions
Depth (package,cm)
7 cm
Gross Weight (Package, kg)
0.05 kg
Height (package,cm)
2.65 cm
Width (package,cm)
12.6 cm
Performance
Ethernet interface type
10 Gigabit Ethernet
Fiber optic connector
LC
Interface type
SFP+
Maximum data transfer rate
10000 Mbit/s
Maximum transfer distance
40000 m
Multi-mode fiber (MMF) supported
No
Networking standards
IEEE 802.3ae
Rx wavelength (max)
1330 nm
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Tx wavelength (max)
1270 nm
Product dimensions
Net Weight (Product, kg)
0.04 kg
Vendor information
Brand Name
Planet
Warranty
2 Year(s)
View AllClose
To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET has released the MTB-T series 10GBASE-SR/LR/BX transceivers that can operate reliably in an electrically harsh, climatically demanding, and -40 to 75 degrees C operating temperature environment. The MTB-T series 10GBASE-SR/LR/BX transceivers are definitely easier and faster to connect than the 1000BASE-SX/LX/BX counterpart.
The 10GBASE-T SFP+ Copper Transceiver is specifically designed for high-speed communication links that require 10 gigabit Ethernet over Cat 6a/7 cable. It is the first SFP+ transceiver that offers 10Gb/s communication over fiber optic media.
Interoperability with legacy Ethernet equipment via auto-negotiation is of particular significance as it enables data center to expand without added expenses. The added benefit is that it provides backward compatibility with legacy networks by adopting standard-based technology of the familiar RJ45 connector.
Features
Plug and Play
Yes
Product colour
Metallic
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Package dimensions
Depth (package,cm)
7 cm
Gross Weight (Package, kg)
0.05 kg
Height (package,cm)
2.65 cm
Width (package,cm)
12.6 cm
Performance
Ethernet interface type
10 Gigabit Ethernet
Fiber optic connector
LC
Interface type
SFP+
Maximum data transfer rate
10000 Mbit/s
Maximum transfer distance
40000 m
Multi-mode fiber (MMF) supported
No
Networking standards
IEEE 802.3ae
Rx wavelength (max)
1330 nm
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Tx wavelength (max)
1270 nm
Product dimensions
Net Weight (Product, kg)
0.04 kg
Vendor information
Brand Name
Planet
Warranty
2 Year(s)
