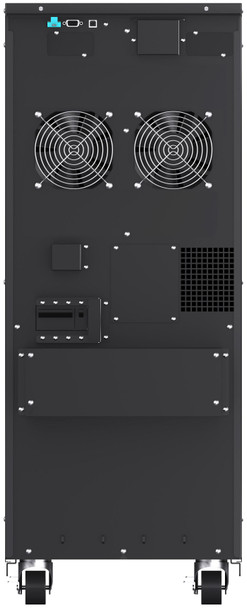

PowerWalker 10120188 Vfi 10000Tp 3/1 10120188

A Online UPS always provide clean power and have a protection against all standard power problems in a network.

A Online UPS is build up with double- conversation technology. First, incoming AC power is converted into DC power and stored in a buffer. In the second step the buffered DC power is converted to AC power and made available for the loads. Doing so the UPS loads are isolated from incoming AC power (and all its problems) and fed by power generated by the UPS. The result is an always clean and stable output power.

Another advantage of this technology is the fact that there is no transfer time in case of a failure. Furthermore a Online UPS provides the most reliable voltage regulation which is typically within 2-3 percent of the standard voltage wave form. Online UPS offers USB port (RS-232) to connect to a multitude of operating systems for maintenance, monitoring voltage, power and battery status.

Online UPS are designed for all critical applications

- 10000VA Online UPS with 3 phase in / 1 phase out
- High Power Factor 0.9
- Terminal Outlet, EPO, MBS, USB, RS-232
- Parallel System Configuration / Parallel redundancy
- Optional SNMP card, Battery Pack, Modbus card, AS/400 Card, Charger

Battery



Battery capacity



9 Ah


Battery voltage



12 V


Number of batteries supported



4


Design



Cooling type



Active


Display type



LCD


Form factor



Tower


LED indicators



Y, Yes


Product colour



Black


Features



Crest factor



3:1


Emergency Power Off (EPO)



Yes


Input frequency



45/66 Hz


Input operation voltage (max)



276 V


Input operation voltage (min)



110 V


Input power factor



0.99


Noise level



55 dB


Output operation voltage (max)



240 V


Output operation voltage (min)



208 V


Output power



9000 Watt


Output power capacity



10 kVA


Output voltage regulation



1 %


Output voltage Total Harmonic Distortion (THD)



2 %


UPS topology



Double-conversion (Online)


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Packaging data



Bundled software



Winpower


Ports & interfaces



AC outlet types



Terminal


RS-232 ports



1


USB 2.0 ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.1 kg


Vendor information



Brand Name


PowerWalker


Warranty



1 Year(s)
