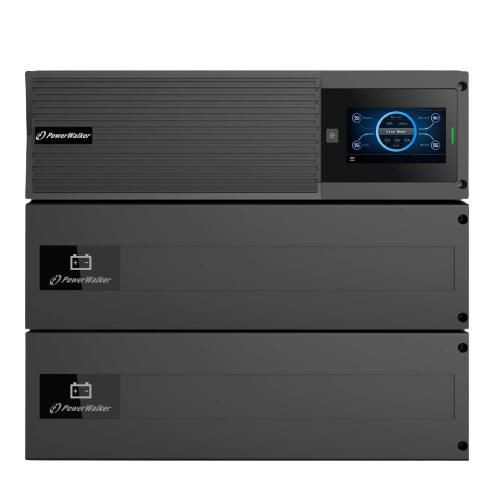

PowerWalker 10122232 VFI 20000 ICR IoT 3/3 10122232

Battery Set for VFI 20000 ICR IoT 3/3

Battery



Battery capacity



9 Ah


Battery recharge time



6 Hour


Battery voltage



12 V


Charging current



13 A


Typical backup time at full load



3.8 min


Typical backup time at half load



9 min


Design



Built-in fan



Yes


Form factor



Rackmount/Tower


International Protection (IP) code



IP20


Product colour



Black


Rack capacity



9U


Features



Crest factor



3:1


ECO mode



Yes


Efficiency



96 %


Input frequency



40/70 Hz


Input operation voltage (max)



520 V


Input operation voltage (min)



190 V


Noise level



55 dB


Number of input phases



3


Number of output phases



3


Output frequency regulation



0.1 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



220 V


Output power



20000 Watt


Output power capacity



20 kVA


Output power factor



1


Output voltage regulation



1 %


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



145.31 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


RS-232 ports



1


USB port



Yes


USB port type



USB Type-B


Product dimensions



Net Weight (Product, kg)



145.3 kg


Product Depth



55.9 cm


Product Height



39 cm


Product Width



43.8 cm


Vendor information



Brand Name


PowerWalker


Warranty



2 Year(s)
