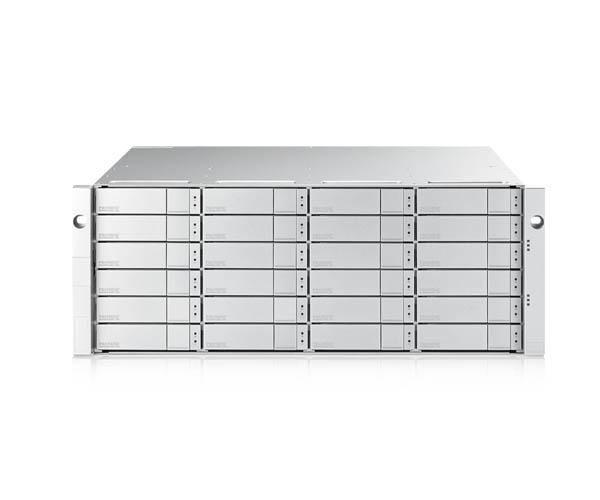

Promise Technology F40J58S00010010 J5800S Disk Array 96 Tb Rack F40J58S00010010

Affordable Enterprise-Level Storage

The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.

Supports Hybrid HDD/SSD Arrays

Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output, and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.

Increased Performance To Optimize Datacenters

The VTrak J5000 Series moves data at incredible speeds, allowing you to optimize your datacenter. Administrators can deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host. Flash arrays allow you to optimize speed for key enterprise apps that require utmost performance. The internal 12 Gb/s SAS expander-based architecture allows for data to transfer faster with greater redundancy protection.

Design



Certification



GreenPC, WEEE


Chassis type



Rack (4U)


LED indicators



Y, Yes


Noise level



55 dB


Product colour



Stainless steel


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



5 - 40 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 60 �C


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Performance



Device class



Large Enterprise Business


Ports & interfaces



Remote management port



RJ-45 (Gigabit)


SAS host port



Yes


Serial interface type



RS-232


Power



AC input voltage



100-240 V


Number of power supply units



2


Redundant power supply (RPS) support



Yes


Product dimensions



Net Weight (Product, kg)



0.46 kg


Product Depth



50.7 cm


Product Height



17.44 cm


Product Width



44.67 cm


Storage



Data transfer rate



12 Gbit/s


HDD speed



7200 RPM


Hot-swap drive bays



Yes


Installed storage drive type



HDD


Number of storage drives installed



24


Number of storage drives supported



24


Storage drive capacity



4 TB


Storage drive interface



Serial Attached SCSI (SAS)


Storage drive size



3.5 "


Storage drives installed



Yes


Supported storage drive types



HDD & SSD


Total installed storage capacity



96 TB


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Promise Technology


Warranty



1 Year(s)
