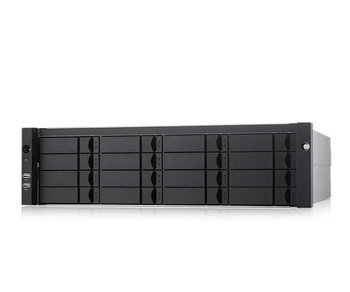

Promise Technology F40VA6600000191 Vess A6600 Network F40VA6600000191

Optimized for Video Surveillance
The Vess A6000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames.

More Flexible Deployment with Linux OS Supported
For those who prefers Linux OS than Windows to build up their surveillance system, Promise Vess A series support the multiple Linux distributions on diferent Vess A models to meet the various requirement to deploy the Linux-base VMS in their surveillance back-end system(*). This helps the Linux users have more options for their surveillance system deployment to enjoy the beneft of Linux OS.

Higher Capacity with Better Design
Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A6600) and 4U 24-drive (Vess A6800). Combined with Promise Technology know how creates an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD products to extend capacity without the added expense of an additional RAID server.

Reduces Deployment Costs and Complexity
Support and equipment costs are reduced; without a separate RAID storage unit to manage, there is no longer a need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A6000 Series reduces interoperability conflicts caused when integrating different hardware.

SMARTBOOST� Technologies
PROMISE proprietary SMARTBOOST� Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST� Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.

Reduce the complexity of Maintenance by OPAS
One Plug Auto Service (OPAS) is a unique feature of Promise Vess App solutions that provides user convenience, reduces complexity for maintenance, and stream- lines technical support. OPAS enables users to easily collect all the necessary logs and data used by the Promise support team to analyze.

Design



Buzzer



Yes


Chassis type



Rack


LED indicators



Y, Yes


Rack capacity



3U


Features



Certification



CE, FCC, VCCI, RCM, BSMI, KC, (EMI Class A), CB, cTUVus


Operating system installed



Windows Server 2016


Memory



Internal memory



8 GB


Internal memory type



DDR4


Maximum internal memory



64 GB


Package dimensions



Gross Weight (Package, kg)



0.14 kg


Ports & interfaces



Audio in/out



Yes


DVI-D ports quantity



1


Ethernet interface type



Gigabit Ethernet


Ethernet LAN (RJ-45) ports



2


HDMI ports quantity



1


Number of expansion slots



1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) output ports



1


Power



AC input frequency



60/50 Hz


AC input voltage



100 - 240 V


Power supply



550 Watt


Redundant power supply (RPS) support



Yes


Processor



Processor boost frequency



4 GHz


Processor cores



4


Processor family



Intel� Xeon�


Processor frequency



3.6 GHz


Processor manufacturer



Intel


Processor model



E3-1275 v5


Processor threads



8


Product dimensions



Net Weight (Product, kg)



0.11 kg


Product Depth



50.3 cm


Product Height



13.1 cm


Product Width



44.7 cm


Storage



Data transfer rate



6 Gbit/s


HDD interface



Serial ATA III


HDD size



2.5/3.5 "


Hot-swap



Yes


Hot-swap drive bays



Yes


Number of HDDs supported



16


Number of SSDs installed



1


RAID levels



0, 0+1, 1, 1E, 3, 5, 6, 10, 30, 50, 60, JBOD


RAID support



Yes


SSD capacity



128 GB


Total storage capacity



128 TB


Vendor information



Brand Name


Promise Technology


Warranty



1 Year(s)
