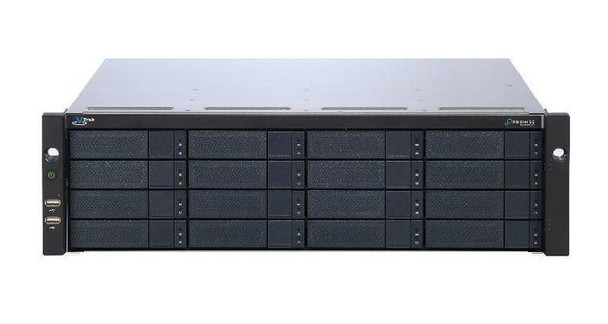

Promise Technology F40VN1600000029 Vtrak N1616 Storage Server F40VN1600000029

TierBoost� available on the VTrak N1616, is a data tier management service that automatically classifies data by frequency of access. �Hot� data is migrated to the fastest tier (NVMe SSD), while the �Cold� data is placed in lower priority tier (SATA HDD), a middle tier (SATA SSD) contains �Warm� data with frequency access in between the other tiers.

Data Protection is Essential

Protection against data loss is ensured by the famous PromiseRAID engine featured in the entire VTrak line of network storage systems. Additional backup mechanisms to cloud or remote storage are easily managed using the web-based management interface.

Manageability

Simplified administration is another win for VTrak N-Series. The system is shipped ready to use with a Shared Storage pool that includes an administrator-controlled Team folder setup for immediate sharing. The software for both administrator and client is very easy to use, with an intuitive GUI. The default setup requires very little administration yet still gives complete access control to the administrator. More advanced system administration is available using the web-based management user interface.

Design



Chassis type



Rack (3U)


Cooling type



Active


LED indicators



Y, Yes


Product colour



Black


Memory



Internal memory



64 GB


Internal memory type



DDR4


Maximum RAM supported



128 GB


Memory slots



4


Network



Copper ethernet cabling technology



10GBASE-T


Ethernet LAN



Yes


Ethernet LAN data rate supported (max)



10000 Mbit/s


Ethernet LAN data rates



10000


Supported network protocols



CIFS / NFS / FTP / WebDAV


Operational conditions



Operating temperature (T-T)



5 - 35 �C


Storage temperature (T-T)



-40 - 60 �C


Other features



Throughput



10 SSD TierBoost


Package dimensions



Gross Weight (Package, kg)



3.9 kg


Performance



Backup function



Yes


Device class



Small & Medium Business


On/off switch



Yes


Type



Storage server


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


HDMI ports quantity



1


Serial ports quantity



1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB port



Yes


VGA (D-Sub) ports quantity



1


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Fan voltage



12 V


Number of power supply units



2


Power supply location



Built-in


Power supply unit (PSU) capacity



550 Watt


Processor



Bus type



DMI3


CPU configuration (max)



1


Processor boost frequency



4.6 GHz


Processor cache



12 MB


Processor cores



6


Processor family



Intel� Core� i7


Processor frequency



3.2 GHz


Processor manufacturer



Intel


Processor model



i7-8700


Processor threads



12


Processor special features



Intel Identity Protection Technology version



1.00


Intel Secure Key Technology version



1.00


Intel Stable Image Platform Program (SIPP) version



1


Intel TSX-NI version



1.00


Product dimensions



Net Weight (Product, kg)



3 kg


Product Depth



50.3 cm


Product Height



13.1 cm


Product Width



44.7 cm


Software



Mac operating systems supported



Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Windows operating systems supported



Windows 10


Storage



Hot-swap drive bays



Yes


Installed storage drive type



SSD


Maximum supported storage capacity



18 TB


Number of storage drives installed



16


Number of storage drives supported



16


RAID levels



0, 1, 5, 6, 10, 50, 60


RAID support



Yes


Storage drive interface



Serial ATA III, U.2


Storage drive sizes supported



2.5, 3.5


Storage drives installed



Yes


Supported storage drive interfaces



Serial ATA III, U.2


Supported storage drive types



HDD & SSD


Total installed storage capacity



92 TB


Vendor information



Brand Name


Promise Technology


Warranty



1 Year(s)
