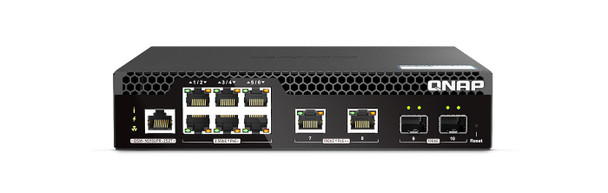

QNAP QSW-M2106PR-2S2T Half-width Rackmount 10GbE QSW-M2106PR-2S2T

The QNAP QSW-M2106PR-2S2T is a half-width rackmount L2 PoE Managed Switch with six 90-watt 2.5GbE PoE++ ports, two 90-watt 10GbE PoE++ ports and two 10GbE SFP+ fiber ports. Providing a total power budget of 310 watts, the QSW-M2106PR-2S2T enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6/Wi-Fi 6E/Wi-Fi 7 Access Points and Routers. The QNAP Switch System (QSS) features a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2106PR-2S2T offers SMBs a cost-optimized and centrally managed LAN deployment solution. With a half-width design, two QSW-M2106PR-2S2T can be installed in a 1U rack space for space-saving.

10GbE/2.5GbE for Ultra-high-speed Wi-Fi Applications
From Wi-Fi 6 to Wi-Fi 6E and even the Wi-Fi 7, ultra-high-speed and high-power APs and Routers are driving up access point uplink requirements. Supporting multiple 10GbE/2.5GbE ports, the QSW-M2106PR-2S2T breaks through the bandwidth limitations of cabled and wireless networks to enhance your storage and access experience. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2106PR-2S2T provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium businesses, hotels, and stores.

High PoE Capability� up to Eight-port 90W PoE++ and 310 Total Power Budget
The QSW-M2106PR-2S2T is compliant with the IEEE 802.3bt PoE++ standard and offers 2-port 10GbE and 6-port 2.5GbE 90-watt PoE++ capabilities. The QSW-M2106PR-2S2T can supply a total power budget of 310 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

Half-width design, two models in 1U
With a half-width rackmount design, a QSW-M2106PR-2S2T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M2106R-2S2T) for efficient physical space utilization and tidy cabling.

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2106PR-2S2T provides two 10GbE SFP+ ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T� devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M2106PR-2S2T is 110Gbps, guaranteeing the full potential of each port.

Dependable performance with effective heat dissipation
With a compact metal body, the QSW-M2106PR-2S2T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.

QSS: Human-centered settings guide
The QSW-M2106PR-2S2T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.

Optimize Network Performance with bandwidth and packet control
The QSW-M2106PR-2S2T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

Powerful security and system functions
The QSW-M2106PR-2S2T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

Intelligent PoE Functions for Efficient, Centralized PD Management
The QSW-M2106PR-2S2T supports intelligent PoE management functions, including scheduling, power supply prioritization, and enabling/disabling power via QSS. You can obtain real-time network connection status and power consumption information of Powered Devices (PD) and configure PDs simultaneously to promote an energy-saving PoE network.

Fully embrace High-Speed Networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

QNAP High-speed Switch Solutions for Diverse Business Network Environments
QNAP provides comprehensive enterprise managed and unmanaged switches with speeds ranging from 2.5GbE, 10GbE to 25GbE and covering PoE, industrial-grade, rackmount, and desktop models. QNAP�s all-inclusive high-speed switches assist businesses in quickly deploying high-speed network infrastructure, accelerating enterprise backbone, smart hotels, retai, and industry 5.0 applications.

Extend hardware warranty up to 5 years
The QSW-M2106PR-2S2T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Switching capacity



110 Gbit/s


Throughput



55 Gbit/s


Design



Certification



CE, FCC, VCCI, BSMI


Electromagnetic compatibility



CLASS A


Form factor



1U


LED indicators



Activity, Fan, Link, PoE, Speed, Status


Number of fans



2 fan(s)


Product colour



Black


Rack mounting



Yes


Reset button



Yes


Stackable



Yes


Management features



Switch layer



L2


Switch type



Managed


Network



Networking standards



IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Depth (package,cm)



34.2 cm


Gross Weight (Package, kg)



2 kg


Height (package,cm)



10.7 cm


Width (package,cm)



33.7 cm


Ports & interfaces



2.5G Ethernet (copper) ports quantity



6


Basic switching RJ-45 Ethernet ports quantity



2


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Console port



RJ-45


Installed SFP+ modules quantity



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



350 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet 4PPoE (PoE++) ports quantity



8


Total Power over Ethernet (PoE) budget



310 Watt


Product dimensions



Net Weight (Product, kg)



1.5 kg


Product Depth



24.8 cm


Product Height



4.3 cm


Product Width



2.7 cm


Vendor information



Brand Name


QNAP


Warranty



2 Year(s)
