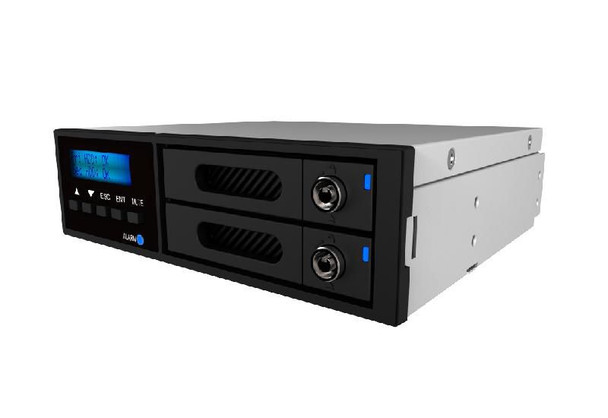

Raidon IR2022 INT. RAID 2X 2.5IN SATA TO 1X IR2022

Accepting 2 x 2.5-inch SATA 6.0 Gb/s hard drives and coming with mirroring RAID 1 function to backup and protect data on time, no worry about system failed caused by hard drive failure any more ,Also iR2022 supports RAID 0 function which enhances read/write speed.
Furthermore,it is embedded with RS232 port for hardware status monitoring purpose. Compact size with 5.25-inch CD-ROM bay, internal RAID device iR2022 perfect fits in server, IPC and workstation.

Professionally Nominated and Recommended

iR2022 accommodates 2 of 2.5� SATA III hard drive and offering both RAID 0 and RAID 1 functions . Uses the RAID 0 function to integrate the capacity of one hard drives and to enhance both read & write performance. On the other hand, uses RAID 1 function for data redundancy by mirroring data among both hard drives to prevent the event of a hard drive failure causes system shutdown.

User-friendly Display

Equipped with clear readable LCD display and LED indicators for system monitoring during operation so users can easily grasp the status of the system at all times. Moreover, it comes with visual and audio alarms whenever failure occurs.

iR2022 Upgrade to RAID with Easy

Upgrade your system to RAID array storage through install the iR2022 to the standard 5.25�CD-ROM.This internal data storage solution can help you to solve the problem of of requiring larger storage volume but with limited space.

Convenient and secure extractable hard disk module

The RAIDON exclusive hard disk trays are designed with a safety lock and secure architecture to lock the hard disk. It effectively maintains sensitive data and is easy to use. If the hard disk is corrupted, users do not have to worry about data maintenance and simply need to buy the same model hard disk with the same capacity to make a replacement. It can greatly reduce the wait time for machine maintenance. Even users who do not understand computer hardware can quickly maintain and replace it.

Good heat dissipation can extend the life of the hard disk

The iR2022 is equipped with a 4-cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times. A longer life of your hard disk will properly protect your data.

Higher Transmission Bandwidth to Enhance Your Work Efficiency

The iR2022 series, which is backward compatible with 3.0/1.5 Gb/s, also supports SATA 6.0 Gb/s transmission bandwidth. Its impressively high speed brings you higher efficiency, and works perfectly with high speed solid-state drives. It handles both large video files or graphic design projects with equal ease.

Features



Certification



CE, FCC


Data transfer rate



6 Gbit/s


Fan diameter



4 cm


HDD interface



SATA, SATA II, SATA III


HDD size



2.5 "


Key lock



Yes


LED indicators



Yes


Number of fans



1 fan(s)


Number of HDDs supported



2


Product colour



Black


RAID levels



0, 1


RAID support



Yes


Size (imperial)



5.25 "


SSD interface



SATA, SATA II, SATA III


Type



Storage drive tray


Logistics data



Products per master (outer) case



10 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 47 �C


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Packaging content



Cables included



SATA


Number of lock keys included



2 pc(s)


Quantity per pack



1 pc(s)


Quick start guide



Yes


Product dimensions



Net Weight (Product, kg)



0.92 kg


Product Depth



14 cm


Product Height



4.3 cm


Product Width



14.8 cm


Sustainability



Sustainability certificates



CE, Federal Communications Commission (FCC)


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Raidon


Warranty



1 Year(s)
