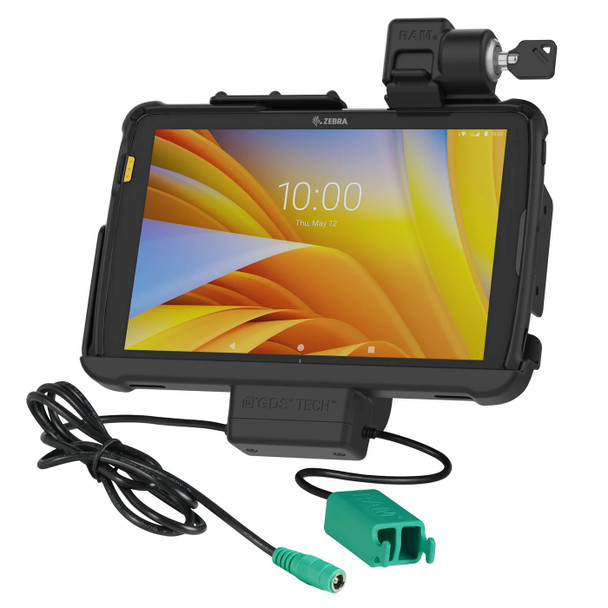

RAM Mounts RAM-HOL-ZE21PD2KLU Locking RAM� Tough-DockT RAM-HOL-ZE21PD2KLU

FEATURES
* Locking RAM� Tough-Dock� with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested
* When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
* Compatible with C and D size RAM� 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM� 2-hole diamond bases and accessory side bracket
* Backed by a 3-year warranty


ADDITIONAL INFORMATION
This dock is not compatible with IntelliSkin�. For IntelliSkin� with GDS� Tech�, see RAM-GDS-DOCKL-ZE21PD2U.

COMPATIBLE DEVICES
* ET40 10" Tablet with Rugged Frame
* ET45 10" Tablet with Rugged Frame

OVERVIEW
Featuring data and charging capabilities and a key lock for theft deterrence, the RAM� Tough-Dock� for Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM� 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM� 2-hole diamond base for additional device mounting such as a phone or other handheld device.

HARDWARE INCLUDED
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8� Machine Screws
(2) #8-32 x 1/2� Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8� Machine Screws
(2) #10-24 Nylock Nuts
(2) Small Cable Ties

Network



Bluetooth



No


Package dimensions



Gross Weight (Package, kg)



0.85 kg


Performance



Basic device type



Tablet


Brand compatibility



Zebra


Compatibility



Zebra ET4x 10" Tablet


Maximum VESA mount



75 x 75 mm


Product colour



Black


VESA mounting



Yes


Ports & interfaces



Docking connector type



USB


USB 2.0 ports quantity



1


USB hub



No


Product dimensions



Net Weight (Product, kg)



0.84 kg


Sustainability



Sustainability certificates



CE, Federal Communications Commission (FCC)


Vendor information



Brand Name


RAM Mounts


Homepage



https://rammount.com/products/ram-hol-ze21pd2klu


Warranty



3 Year(s)
