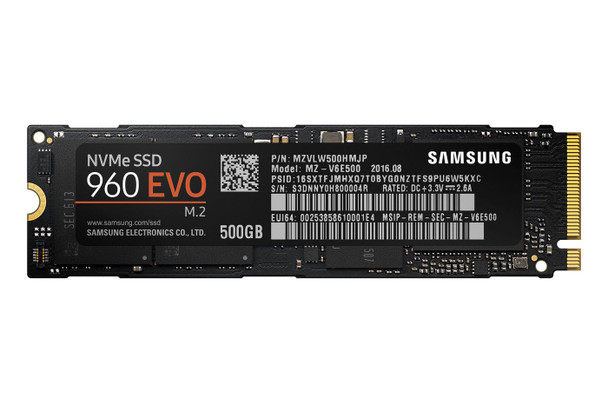

Samsung MZ-V6E500BW-RFB SSD 960 EVO NVMe M.2 500GB MZ-V6E500BW-RFB

Discover the next advancement in SSD technology with our high-performance, highly reliable 960 EVO Series NVMe M.2 SSDs. Non-Volatile Memory Express (NVMe) with a new Polaris controller outperforms our SATA SSDs with exceptionally fast read/write speeds, and Samsung TurboWrite technology accelerates write speeds even further. Samsung's Magician software solution provides advanced functionality to manage, monitor and optimize drive performance.

Raise your performance expectations
Enhanced bandwidth beyond the SATA interface provided by the NVMe interface, combined with the new Polaris controller facilitates sequential Read/Write speeds up to 3,200 MB/s and 1,800 MB/s respectively. Plus, the new Intelligent TurboWrite technology accelerates write speeds even further.

Rest easy with solid reliability
The 960 EVO holds its own by boasting up to 200 TBW* for the 500GB capacity model and is backed by a 3-year limited warranty. Dynamic Thermal Guard prevents overheating, protecting your data and ensuring optimal performance.
*TBW : Terabytes Written

Manage your drive like magic
The 960 EVO comes with the newly upgraded Magician�an advanced software solution for users to monitor, manage and maintain the drive. Magician provides personalized firmware checking and additional functions tailored for individual user's drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date.

Features



Controller type



Samsung Polaris


Hardware encryption



Yes


Interface



PCI Express


Maximum read (4KB)



330000 IOPS


Maximum write (4KB)



330000 IOPS


Mean time between failures (MTBF)



1500000 Hour


Memory type



V-NAND


NVMe



Yes


NVMe version



1.2


PCI Express interface data lanes



x4


Protection features



Shock resistant


Read speed



3200 MB/s


S.M.A.R.T. support



Yes


Security algorithms



256-bit AES


SSD capacity



500 GB


SSD form factor



M.2


TRIM support



Yes


Write speed



1800 MB/s


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating shock



1.5 kg


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Other features



Internal



Yes


Launch date



2/14/2017


Product colour



Black


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Power consumption (average)



5.4 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



2.21 cm


Product Height



0.24 cm


Product Width



8.02 cm


Vendor information



Brand Name


Samsung


Warranty



1 Year(s)
