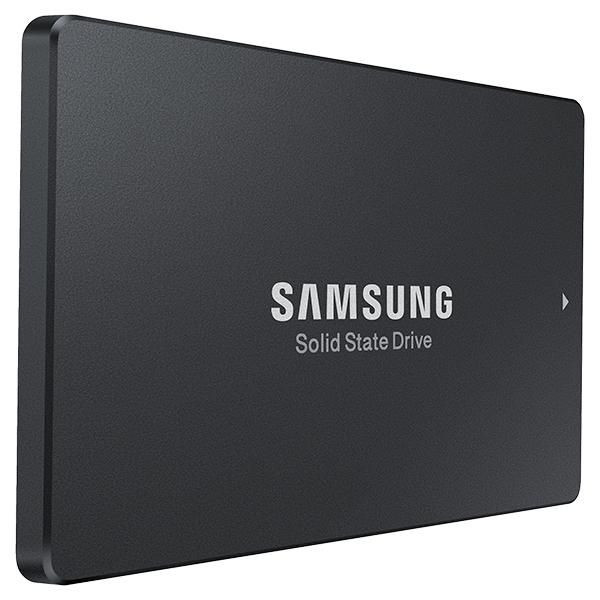

Samsung MZ7LM480HMHQ-00005-RFB SSD 2.5" 480GB Samsung PM863a MZ7LM480HMHQ-00005-RFB

A leading-edge SSD for mixed workloads
The SATA 2.5-inch PM863a Solid State Drive (SSD) delivers robust performance and lower latency, along with a high level of QoS (Quality of Service) and enhanced reliability under mixed workloads. The PM863a is ideal for CDNs (content delivery networks), streaming or web server applications and cloud services.

V-NAND technology
Samsung V-NAND technology enables the PM863a to provide a wide capacity up to 3.84 TB on the same footprint, as well as deliver better performance, endurance and power efficiency to provide all the essentials for 24/7 data center environments.

Robust performance
The PM863a shows outstanding random read/write speeds up to 97K/24K IOPS. It also delivers a strong IOPS consistency above 99% in random read, as well as superior performance in random write.

Lower TCO without sacrificing performance
The PM863a boasts a better performance-to-power ratio than standard HDD. This high performance and better power efficiency reduce operating costs of data centers. The SATA 2.5-inch PM863a can replace HDD by using the existing infrastructure and is available in wide capacity options up to 3,840 GB, which can save server space.

Increase data security
The PM863a protects data with AES 256-bit hardware-based encryption. This encryption engine secures data without the performance degradation often experienced with software-based encryption.

Enhanced reliability
The PM863a demonstrates a low probability of data corruption. End-to-end protection keeps data consistent along the entire data transfer path and Power Loss Protection safeguards data in the write cache in the event of power failure. The Dynamic Thermal Guard algorithm monitors the temperature of the SSD in order to prevent thermal shutdown.

Technology leader in innovation
Samsung is a leading solution provider that designs and integrates critical components of the Solid State Drive in house. Because Samsung has intimate knowledge of every component and is a leader in V-NAND technology innovation, it can fine-tune each element and create perfect synergy.

Features



Data transfer rate



6 Gbit/s


Hardware encryption



Yes


Interface



Serial ATA III


Mean time between failures (MTBF)



2000000 Hour


Memory type



TLC


Random read (4KB)



97000 IOPS


Random write (4KB)



16000 IOPS


Read speed



520 MB/s


S.M.A.R.T. support



Yes


Security algorithms



256-bit AES


SSD capacity



480 GB


SSD form factor



2.5"


TRIM support



Yes


Write speed



480 MB/s


Logistics data



Harmonized System (HS) code



84717070


Operational conditions



Operating shock



1.5 kg


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Other features



NAND controller



V-NAND


Product colour



Black


Package dimensions



Gross Weight (Package, kg)



0.7 kg


Power



Operating voltage



5 V


Power consumption (idle)



1.3 Watt


Power consumption (read)



3 Watt


Power consumption (write)



3 Watt


Product dimensions



Net Weight (Product, kg)



0.6 kg


Product Depth



0.68 cm


Product Height



6.88 cm


Product Width



10 cm


Vendor information



Brand Name


Samsung


Warranty



1 Year(s)
