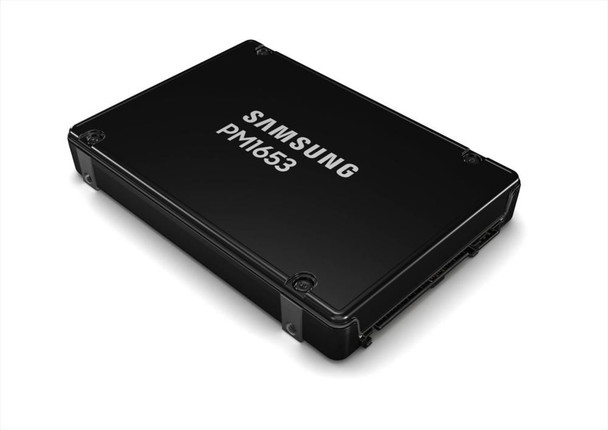

Samsung MZILG1T9HCJR-00A07 Samsung Enterprise PM1653 MZILG1T9HCJR-00A07

A landmark release
for Enterprise SSDs

A Big Leap Forward for Enterprise Storage
Access a whole new level of SSD performance. Now more than ever, enterprises require high-performance storage solutions that are capable of processing heavy workloads quickly and efficiently. Optimized with the latest 24G SAS interface and featuring dual ports for added stability, Samsung�s PM1653 offers enterprises the performance they need to keep up with today�s rapidly evolving data demands.

24G SAS: Class-Leading Performance
The PM1653�s 24G SAS support streamlines storage infrastructure by maximizing throughput.
This is possible thanks to the addition of a cutting-edge Rhino controller that doubles the PM1653's bandwidth. This allows it to offer roughly twice the performance and more than double the random speeds of the previous generation.

Remarkably Reliable
The stability to succeed. The PM1653�s dual ports feature two pairs of signal pins that are connected to a
separate storage system. Utilizing that system, it continuously performs service checks to ensure that if one port fails, the other is capable of maintaining stable service. Such reliability enhances TCO while also adding much-needed stability to mission-critical enterprise applications.

More Capacity, More Efficiency
Featuring Samsung�s latest sixth-generation,
128-layer V-NAND and a maximum capacity of 30.72TB, the PM1653 offers the capacity to keep up with the exponential growth of business data. Such large capacity significantly expands the amount of storage that can be used in the enterprise market.

Features



Component for



Server/workstation


Data transfer rate



24 Gbit/s


Drive writes per day (DWPD)



1


Interface



SAS


Memory type



V-NAND


NVMe



No


Random read (4KB)



720000 IOPS


Random write (4KB)



85000 IOPS


Read speed



4200 MB/s


SSD capacity



2 TB


SSD form factor



2.5"


Write speed



2400 MB/s


Package dimensions



Gross Weight (Package, kg)



0.2 kg


Product dimensions



Net Weight (Product, kg)



0.15 kg


Vendor information



Brand Name


Samsung


Warranty



1 Year(s)
