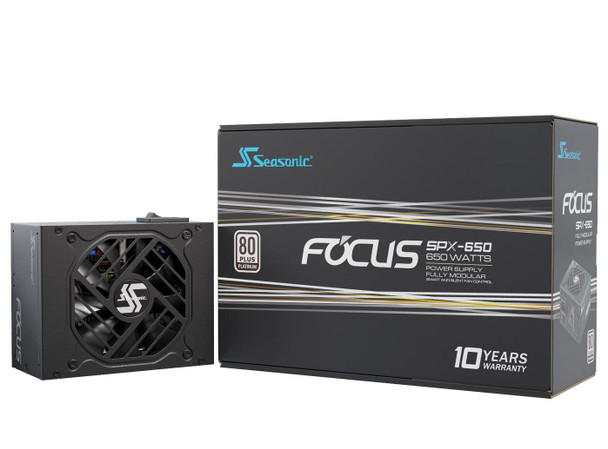

Seasonic FOCUS-SPX-650 Power Supply Unit 650 W 20+4 FOCUS-SPX-650

The new line of Seasonic's FOCUS SPX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SPX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

80 PLUS PLATINUM
The PRIME Platinum Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load.

STANDARD SFX SIZE
The 2021 version of the FOCUS SPX measures at 125 and 100 mm in length and width. This super-compact size allows it to fit into various sized computer cases.

SMART AND SILENT FAN CONTROL
The industry�s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Design



Cooling type



Active


Fan diameter



9.2 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



2.68 kg


Packaging content



Cable tie(s) included



Yes


Cables included



AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA


Performance



80 PLUS certification



80 PLUS Platinum


Bearing technology



FDB


Certification



OPP, OVP, UVP, OCP, OTP, SCP, cTUVus, TUV, CB, CCC, BSMI, EAC, CE


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



CFX


Purpose



PC


Ports & interfaces



Motherboard power cable length



35 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



6


PCI Express power connectors (8-pin)



4


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



648 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Input current



9 - 4.5 A


Max output current (+12V)



54 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power protection features



Over current, Over voltage, Short circuit


Total power



650 Watt


Product dimensions



Net Weight (Product, kg)



2.06 kg


Product Depth



10 cm


Product Height



6.35 cm


Product Width



12.5 cm


Vendor information



Brand Name


Seasonic


Warranty



1 Year(s)
