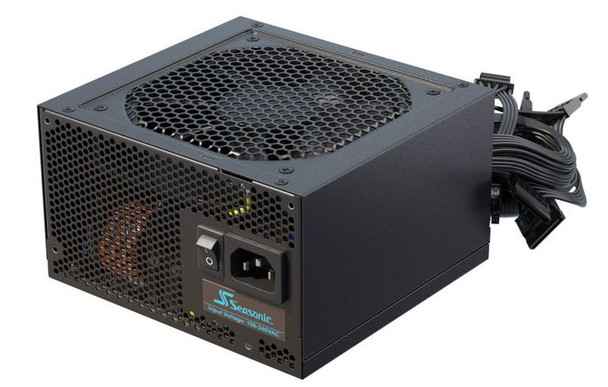

Seasonic G12-GC-550 G12 Gc Power Supply Unit 550 G12-GC-550

The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry�s leading Smart and Silent Fan Control (S2FC).

Design



Fan diameter



12 cm


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Gold


Bearing technology



Sleeve


Certification



Energy Star, RoHS, WEEE, ErP Lot 6, REACH


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Safety



cTUVus, TUV, CB, CCC, BSMI, CE, FCC


Silent mode



Yes


Supported motherboard form factors



ATX


Ports & interfaces



Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



6


PCI Express connector



Yes


PCI Express power cable length



70 cm


PCI Express power connectors (6-pin)



1


PCI Express power connectors (8-pin)



1


Peripheral (Molex) power cable length



690


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



690


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



540 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Input current



10 A


Max output current (+12V)



45 A


Max output current (+3.3V)



15 A


Max output current (+5V)



15 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Total power



550 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Seasonic


Warranty



1 Year(s)
