Seasonic

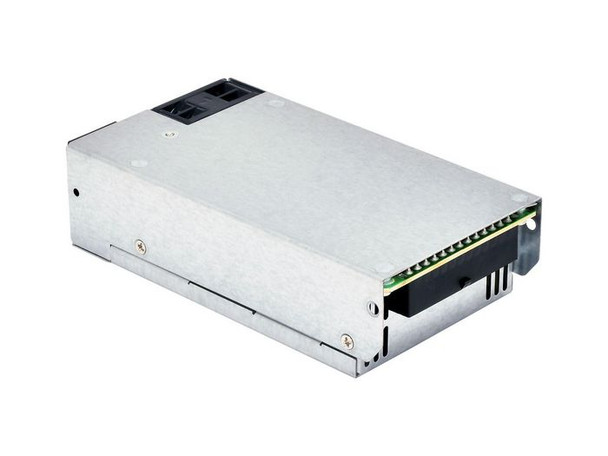

Seasonic SSP-300SUB Power Supply Unit 300 W 20+4 SSP-300SUB
(No reviews yet)
Write a Review
- UPC:
- 4711173873501
- MPN:
- SSP-300SUB
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
SUB FLEX ATX POWER SUPPLY
The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low noise fan control makes them a pleasant companion in any industrial system.
Design
Cooling type
Active
Fan diameter
4 cm
Fan location
Rear
Fan speed
0 - 1000 RPM
Number of fans
1 fan(s)
Product colour
Silver
Other features
Mounting type
Rack mounting
Screws included
Yes
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Performance
80 PLUS certification
80 PLUS Bronze
ATX version
2.31
Power supply unit (PSU) form factor
1U
Purpose
Server
Safety
CB, cUL, TUV, CCC, BSMI
Ports & interfaces
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
1
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Efficiency
80 %
Max output current (+12V1)
18 A
Max output current (+12V2)
18 A
Max output current (+3.3V)
14 A
Max output current (+5Vsb)
2 A
Max output current (-12V)
0.8 A
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over voltage, Short circuit, Under voltage
Total power
300 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
15 cm
Product Height
4.05 cm
Product Width
8.15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Seasonic
Warranty
1 Year(s)
View AllClose
The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low noise fan control makes them a pleasant companion in any industrial system.
Design
Cooling type
Active
Fan diameter
4 cm
Fan location
Rear
Fan speed
0 - 1000 RPM
Number of fans
1 fan(s)
Product colour
Silver
Other features
Mounting type
Rack mounting
Screws included
Yes
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Performance
80 PLUS certification
80 PLUS Bronze
ATX version
2.31
Power supply unit (PSU) form factor
1U
Purpose
Server
Safety
CB, cUL, TUV, CCC, BSMI
Ports & interfaces
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
1
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Efficiency
80 %
Max output current (+12V1)
18 A
Max output current (+12V2)
18 A
Max output current (+3.3V)
14 A
Max output current (+5Vsb)
2 A
Max output current (-12V)
0.8 A
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over voltage, Short circuit, Under voltage
Total power
300 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
15 cm
Product Height
4.05 cm
Product Width
8.15 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Seasonic
Warranty
1 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
