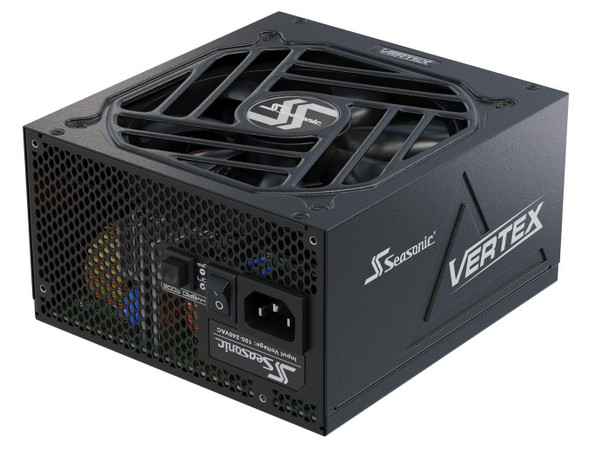

Seasonic VERTEX PX-1200 Power Supply Unit 1200 W VERTEX PX-1200

80 PLUS� PLATINUM
The Vertex PX Series achieves 80 PLUS� Platinum certification with its 92 % efficiency at 50 % system load.

ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic�s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.

PREMIUM HYBRID FAN CONTROL
Seasonic�s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Design



Cooling type



Active


Fan diameter



13.5 cm


Number of fans



1 fan(s)


Product colour



Black


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Cables included



CPU, PCIe, Peripheral (Molex), SATA


Performance



80 PLUS certification



80 PLUS Platinum


ATX version



3.0


Bearing technology



FDB


Mean time between failures (MTBF)



150000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX power connector (20+4 pin)



Yes


Cabling type



Modular


CPU power cable length



65 cm


EPS power connector (8-pin)



Yes


Motherboard power cable length



61 cm


Motherboard power connector



24-pin ATX


PCI Express power cable length



75 cm


PCI Express power connectors (16-pin)



1


Peripheral (Molex) power cable length



470, 690


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



470, 550, 570, 700, 760, 860, 950


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



1200 Watt


Combined power (+3.3V)



125 Watt


Combined power (+5V)



125 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Input current



15 - 7.5 A


Max output current (+12V)



100 A


Max output current (+3.3V)



25 A


Max output current (+5V)



25 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power protection features



Over power, Over voltage, Short circuit, Under power


Total power



1200 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



16 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



ENERGY STAR, REACH, RoHS, WEEE


Vendor information



Brand Name


Seasonic


Warranty



1 Year(s)
