Sharkoon

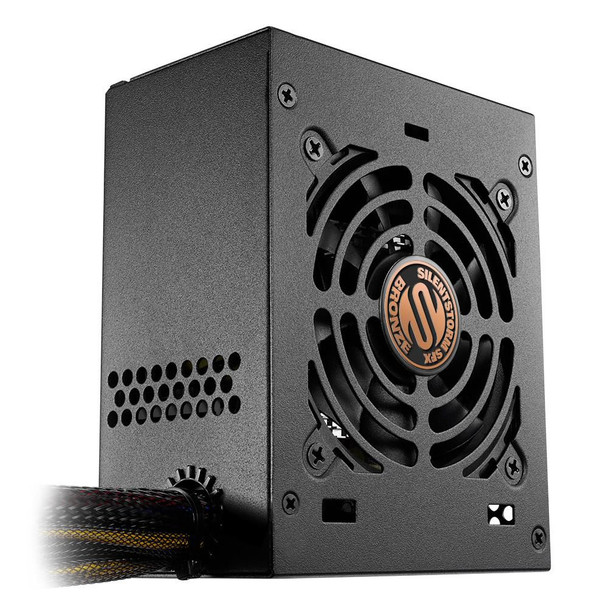

Sharkoon 4044951016402 SILENT STORM SFX BRONZE 450W 4044951016402
(No reviews yet)
Write a Review
- UPC:
- 5715063073438
- MPN:
- 4044951016402
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
SFX Power Supply with �80 PLUS Bronze� Certification
The SilentStorm SFX Bronze series is an �80 PLUS Bronze� certified SFX power supply series for users looking for the best price-performance. It offers outstanding efficiency of over 85 percent under 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative �PLUG LOAD SOLUTIONS� for the Bronze certificate. The compact dimensions total to only 125 x 100 x 63 mm. The power supplies are available in 450 Watt or 350 Watt. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.
Sufficient Connection Options
The Intel HASWELL compatible power supply series in the 350 Watt version provides, in addition to the standard CPU and mainboard connectors, a 6-pin PCIe connector, two SATA, two IDE and a Floppy connector. The SilentStorm SFX Bronze 450 Watt also offers an additional SATA connector as well as a 6+2-pin PCIe connector.
Effective Cooling
The internal power supply components of the SilentStorm SFX Bronze series are cooled by an effective 80 mm fan.
Suitable Protective Circuit with Three Year Guarantee
The SilentStorm SFX Bronze power supply series features an overload, overvoltage, undervoltage as well as short circuit protection and are certified with current energy and environmental standards. The guarantee period is three years.
High Energy Efficiency
This power supply is �80 PLUS Bronze� certified and meets all requirements with an efficiency of at least 85 % under 50 % load and 82 % under both 20 % and 100 % load.
Design
Cooling type
Active
Fan diameter
8 cm
Fan location
Top
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020
Housing colour
Black
Manual
Yes
Package dimensions
Depth (package,cm)
19 cm
Gross Weight (Package, kg)
1.45 kg
Height (package,cm)
8 cm
Width (package,cm)
23 cm
Packaging data
Manual
Yes
Performance
80 PLUS certification
80 PLUS Bronze
Power supply unit (PSU) form factor
SFX
Purpose
PC
Ports & interfaces
CPU power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
3
PCI Express power connectors (6+2 pin)
1
PCI Express power connectors (6-pin)
1
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
432 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
15 Watt
Combined power (-12V)
6 Watt
Input current
7 A
Max output current (+12V)
36 A
Max output current (+3.3V)
21 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.5 A
Power protection features
Over power, Over voltage, Short circuit, Under voltage
Total power
450 Watt
Product dimensions
Net Weight (Product, kg)
0.36 kg
Product Depth
10 cm
Product Height
6.3 cm
Product Width
12.5 cm
Vendor information
Brand Name
Sharkoon
Warranty
1 Year(s)
View AllClose
The SilentStorm SFX Bronze series is an �80 PLUS Bronze� certified SFX power supply series for users looking for the best price-performance. It offers outstanding efficiency of over 85 percent under 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative �PLUG LOAD SOLUTIONS� for the Bronze certificate. The compact dimensions total to only 125 x 100 x 63 mm. The power supplies are available in 450 Watt or 350 Watt. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.
Sufficient Connection Options
The Intel HASWELL compatible power supply series in the 350 Watt version provides, in addition to the standard CPU and mainboard connectors, a 6-pin PCIe connector, two SATA, two IDE and a Floppy connector. The SilentStorm SFX Bronze 450 Watt also offers an additional SATA connector as well as a 6+2-pin PCIe connector.
Effective Cooling
The internal power supply components of the SilentStorm SFX Bronze series are cooled by an effective 80 mm fan.
Suitable Protective Circuit with Three Year Guarantee
The SilentStorm SFX Bronze power supply series features an overload, overvoltage, undervoltage as well as short circuit protection and are certified with current energy and environmental standards. The guarantee period is three years.
High Energy Efficiency
This power supply is �80 PLUS Bronze� certified and meets all requirements with an efficiency of at least 85 % under 50 % load and 82 % under both 20 % and 100 % load.
Design
Cooling type
Active
Fan diameter
8 cm
Fan location
Top
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Other features
Harmonized System (HS) code
84733020
Housing colour
Black
Manual
Yes
Package dimensions
Depth (package,cm)
19 cm
Gross Weight (Package, kg)
1.45 kg
Height (package,cm)
8 cm
Width (package,cm)
23 cm
Packaging data
Manual
Yes
Performance
80 PLUS certification
80 PLUS Bronze
Power supply unit (PSU) form factor
SFX
Purpose
PC
Ports & interfaces
CPU power connector (4+4 pin)
Yes
Floppy disk drive connector
Yes
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
3
PCI Express power connectors (6+2 pin)
1
PCI Express power connectors (6-pin)
1
Peripheral (Molex) power connectors (4-pin)
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
432 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
15 Watt
Combined power (-12V)
6 Watt
Input current
7 A
Max output current (+12V)
36 A
Max output current (+3.3V)
21 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.5 A
Power protection features
Over power, Over voltage, Short circuit, Under voltage
Total power
450 Watt
Product dimensions
Net Weight (Product, kg)
0.36 kg
Product Depth
10 cm
Product Height
6.3 cm
Product Width
12.5 cm
Vendor information
Brand Name
Sharkoon
Warranty
1 Year(s)
