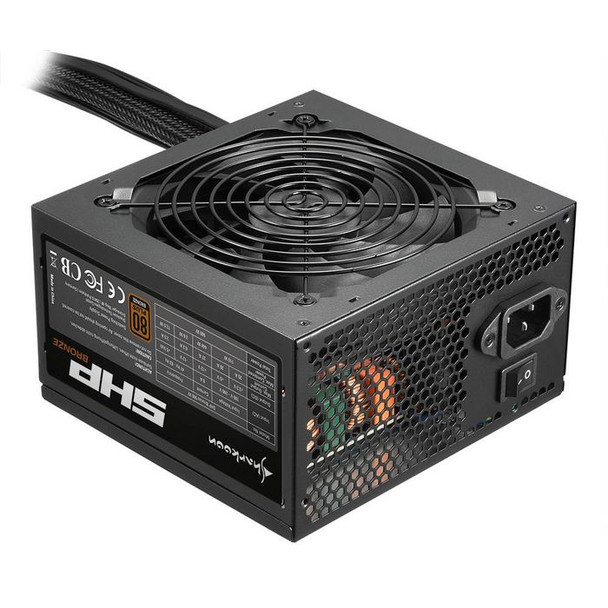

Sharkoon 4044951028948 Shp Bronze Power Supply Unit 4044951028948

The Sharkoon SHP Bronze is a durable ATX power supply with �80 PLUS Bronze� certification. The power supply can be simply installed into common ATX cases and remains conveniently inconspicuous with its black cables and black housing. Ample cooling is ensured through the quiet operation of the 120 mm fan.

Energy Efficient Running
This power supply is certified �80 PLUS Bronze� achieving at least 85 % energy efficiency at 50 % load, as well as at least 82 % efficiency at 20 % and 100 % loads.

Low-Profile Simplicity
The power supply can be installed and connected easily and quickly. Its metallic housing, the fan grille as well as the connectors and the cable sheathing have all been kept completely in black. This allows the power supply to be inconspicuously integrated into the PC casing.

RYZEN Compatible
Thanks to the various, permanently attached standard connections, the SHP Bronze can be connected to all current mainboard models. For maximum compatibility, a 4+4-pin connector is comprised in the two 8-pin CPU connectors.

Reliable Energy Supply
The SHP Bronze has been made for longevity and reliability. The power supply provides a constant and stable voltage, while the noise and heat levels are kept to a minimum.

Quiet Fan
For full concentration in the office or for undisturbed enjoyment while gaming, the fan of the SHP Bronze is distinctly quiet. Also, while in operation, the power supply remains quietly in the background without any distraction.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



2.08 kg


Performance



80 PLUS certification



80 PLUS Bronze


ATX version



2.3


Bearing technology



Sleeve


Certification



CE, FCC


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX power connector (20+4 pin)



Yes


CPU power cable length



60 cm


CPU power connector (4+4 pin)



Yes


Motherboard power cable length



55 cm


Motherboard power connector



20+4 pin ATX


Number of PATA power connectors



2


Number of SATA power connectors



6


PCI Express connector



Yes


PCI Express power cable length



55 cm


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power cable length



150, 550


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (-12V)



3.6 Watt


Combined power (+12V)



444 Watt


Combined power (+3.3V)



110 Watt


Combined power (+5V)



110 Watt


Combined power (+5Vsb)



12.5 Watt


Input current



8 - 4 A


Max output current (-12V)



0.3 A


Max output current (+12V)



37 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Power Factor Correction (PFC) type



Active


Power protection features



Over power, Over voltage, Short circuit, Under voltage


Total power



500 Watt


Product dimensions



Net Weight (Product, kg)



1.6 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Sharkoon


Warranty



1 Year(s)
