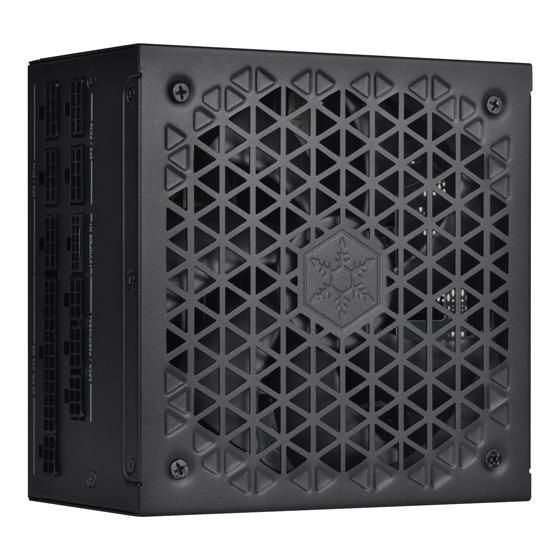

Silverstone SST-HA1200R-PM Hela 1200R Platinum Power SST-HA1200R-PM

12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card�s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems

Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity

Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable

All Japanese electrolytic capacitors
Ensure reliable power and extended life span

Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office us

Design



Cooling type



Active


Fan diameter



13.5 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Platinum


ATX version



3.0


Bearing technology



FDB


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Modular


CPU P4 connector (4-pin)



2


EPS power connector (4+4 pin)



Yes


Floppy disk drive cable length



10 cm


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power cable length



60 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



12


PCI Express power connectors (8-pin)



6


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



47 - 63 Hz


AC input voltage



90 - 264 V


Combined power (+12V)



1200 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Efficiency



88 %


Max output current (+12V)



100 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



1200 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


Silverstone


Warranty



1 Year(s)
