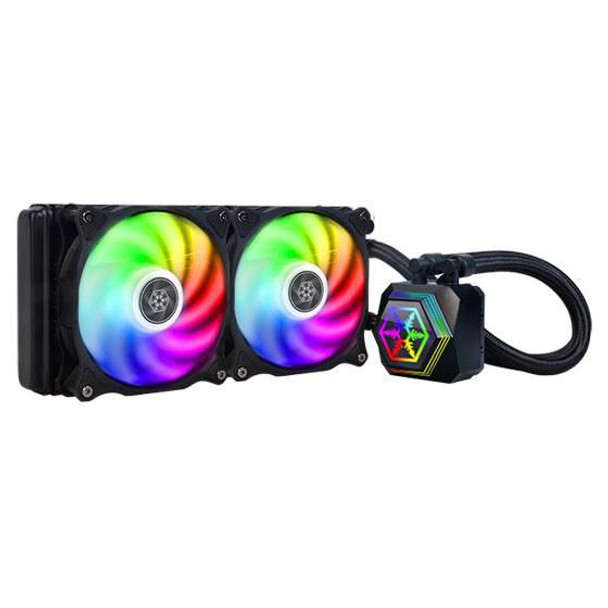

Silverstone SST-PF240-ARGB-V2 Pf240-Argb Processor SST-PF240-ARGB-V2

High efficiency multi-chamber pump design
Water block includes a pump with multi chamber design that isolates hot and cold liquid channels to prevent heat bleeding, thus making it more effective at removing heat away from the water block.

Superior motor construction
The pump motor utilizes three phase, six pole design for smoother, quieter operation compared to most single phase, four pole design. Energy efficiency also improves as well.

0.2mm micro-liquid channels
0.2mm micro liquid channels evenly distribute liquid flow for improved heat dissipation.

Automotive grade sine wave generator
An automotive grade sine wave generator is used to drive the pump motor. This ensures electrical noise and vibration are kept to a minimum. It is also AEC-Q100 certified according to Automotive Electronics Council�s standard so it has great quality and durability.

Automotive grade radiator
Automotive grade radiator is used so it has excellent anti-corrosive properties and can easily survive harsh elements that includes vapor, liquid, grease, solvent.

Pressure optimized radiator fan
Included PWM fan (Air Blazer 120R) has unique ribbed edge fan blades that suppress air turbulent noise with geometry optimized for both air flow and pressure. This ensure maximum performance with lowest possible noise.

Design



Fan connector



4-pin + 4-pin


Illumination colour



Blue, Green, Red


Illumination LED



Yes


Material



Rubber


Number of fans



2 fan(s)


Product colour



Black


Radiator material



Aluminum


Water block material



Copper/Plastic


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging content



Package type



Box


RGB controller included



Yes


Performance



Fan diameter



12 cm


Fan noise level (max)



35.6 dB


Fan noise level (min)



7.4 dB


Fan speed (max)



2200 RPM


Fan speed (min)



600 RPM


Maximum air pressure



3.53 mmH2O


Maximum airflow



94 cfm


Pulse-width modulation (PWM) support



Yes


Pump motor speed



3400 RPM


Quantity per pack



1 pc(s)


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM3, Socket AM4, Socket FM1, Socket FM2


Type



All-in-one liquid cooler


Power



Fan current



0.32 A


Fan voltage



12 V


LED voltage



5 V


Pump current



390 mA


Pump voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Silverstone


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 25 x 120 mm


Radiator depth



27.2 cm


Radiator height



2.8 cm


Radiator width



12 cm


Tube length



40 cm


Waterblock depth



6.1 cm


Waterblock height



5 cm


Waterblock width



6.1 cm
