Silverstone

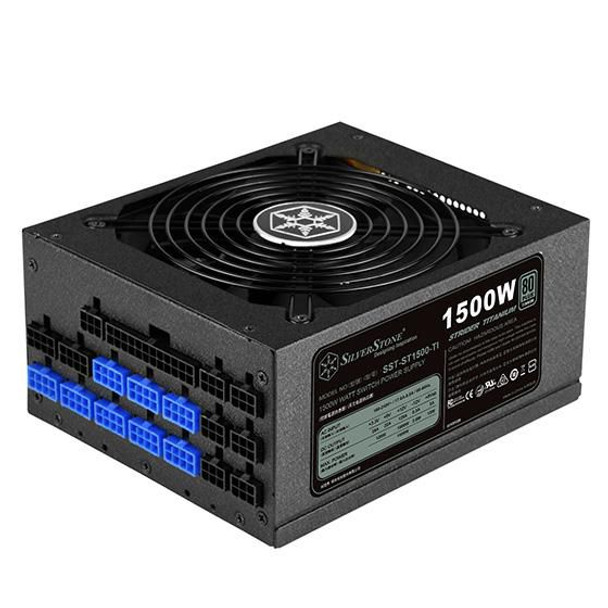

Silverstone SST-ST1500-TI St1500-Ti Power Supply Unit SST-ST1500-TI
- UPC:
- 0000000000000
- MPN:
- SST-ST1500-TI
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The 80 PLUS Titanium certification represents the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. For SilverStone, achieving the highest efficiency is just one aspect to what makes for a technically advanced power supply. The available power also needs to be condensed into a physical package as small as possible so that users can freely utilize it in any case or system with minimal interference. For the Strider Titanium series power supplies, all models are among the smallest in size for their wattage levels. As befitting of being in the Strider series, abundant enthusiasts features are included such as all Japanese capacitors, �3% regulation, powerful single +12V rail, 24/7 continuous power output at 50?, and dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support. For those looking to build the most efficient systems possible with multiple GPUs for gaming, folding, mining, scientific calculations, or machine learning, the 1100W / 1300W / 1500W Strider Titanium series power supplies are definitely the top choices.
Design
Fan diameter
13.5 cm
Fan location
Top
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Operational conditions
Operating temperature (T-T)
0 - 50 �C
Package dimensions
Gross Weight (Package, kg)
5.15 kg
Performance
80 PLUS certification
80 PLUS Titanium
ATX version
2.4
Mean time between failures (MTBF)
100000 Hour
Noise level
36 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Cabling type
Modular
CPU power connector (4+4 pin)
Yes
Floppy disk drive cable length
10 cm
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
55 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
16
PCI Express connector
Yes
PCI Express power cable length
55 cm
PCI Express power connectors (6+2 pin)
8
Peripheral (Molex) power cable length
150, 600
Peripheral (Molex) power connectors (4-pin)
6
SATA power cable length
150, 600
Power
AC input frequency
47 - 63 Hz
AC input voltage
90 - 264 V
Combined power (+12V)
1500 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Efficiency
94 %
Max output current (+12V1)
125 A
Max output current (+3.3V)
25 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Peak power
1600 Watt
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power
1500 Watt
Product dimensions
Net Weight (Product, kg)
3.96 kg
Product Depth
18 cm
Product Height
8.6 cm
Product Width
15 cm
Vendor information
Brand Name
Silverstone
Warranty
1 Year(s)
