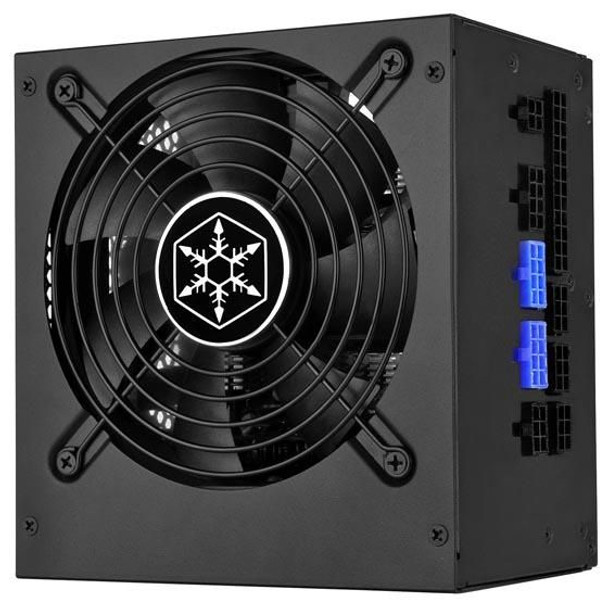

Silverstone SST-ST55F-PT St55F-Pt Power Supply Unit SST-ST55F-PT

As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include �3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.

- Compact design with a depth of 140mm for easy integration
- High efficiency with 80 PLUS Platinum certification
- 100% modular cables
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Strict �3% voltage regulation and low ripple & noise
- Ultra silent 120mm fan with intelligent semi-fanless operation

Design



Fan diameter



12 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



2.8 kg


Performance



80 PLUS certification



80 PLUS Platinum


Mean time between failures (MTBF)



100000 Hour


Noise level



28 dB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX power connector (20+4 pin)



Yes


Cabling type



Modular


EPS power connector (8-pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



2


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



8


PCI Express connector



Yes


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power connectors (4-pin)



6


Power



AC input frequency



47 - 63 Hz


AC input voltage



90 - 264 V


Combined power (+12V)



550 Watt


Combined power (+3.3V)



105 Watt


Combined power (+5V)



105 Watt


Efficiency



92 %


Max output current (+12V)



45.9 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power factor



0.9


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit


Total power



550 Watt


Product dimensions



Net Weight (Product, kg)



2.15 kg


Product Depth



14 cm


Product Height



8.6 cm


Product Width



16 cm


Vendor information



Brand Name


Silverstone


Warranty



1 Year(s)
