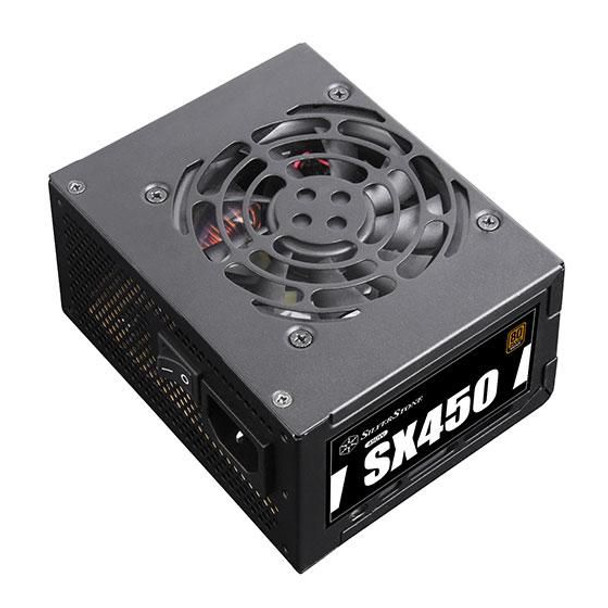

Silverstone SST-SX450-B Sx450-B Power Supply Unit 450 SST-SX450-B
- UPC:
- 0000000000000
- MPN:
- SST-SX450-B
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Support IEC 62368-1 safety standard
Comply with updated safety standard to provide additional security for you under the changing regulations
High efficiency with 80 PLUS Bronze certification
80 PLUS Bronze efficiency and a silent running fan for class leading efficiency and low noise
Active PFC + Forward + DC to DC design
Active PFC provides higher power efficiency, while Forward + DC to DC design provides stability and reliability
Design
Fan diameter
8 cm
Number of fans
1 fan(s)
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Operational conditions
Operating temperature (T-T)
0 - 40 �C
Package dimensions
Gross Weight (Package, kg)
1.18 kg
Performance
80 PLUS certification
80 PLUS Bronze
Mean time between failures (MTBF)
100000 Hour
Power supply unit (PSU) form factor
SFX
Purpose
PC
Ports & interfaces
EPS power connector (4+4 pin)
Yes
Floppy disk drive cable length
10 cm
Floppy drive power connector
1
Motherboard power cable length
30 cm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
3
PCI Express power cable length
40 cm
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
200, 300
Peripheral (Molex) power connectors (4-pin)
2
SATA power cable length
100, 200, 300
Power
AC input frequency
47 - 63 Hz
AC input voltage
90 - 265 V
Combined power (+12V)
450 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Efficiency
85 %
Max output current (+12V)
37.5 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Total power
450 Watt
Product dimensions
Net Weight (Product, kg)
0.91 kg
Product Depth
10 cm
Product Height
6.35 cm
Product Width
12.5 cm
Vendor information
Brand Name
Silverstone
Warranty
1 Year(s)
