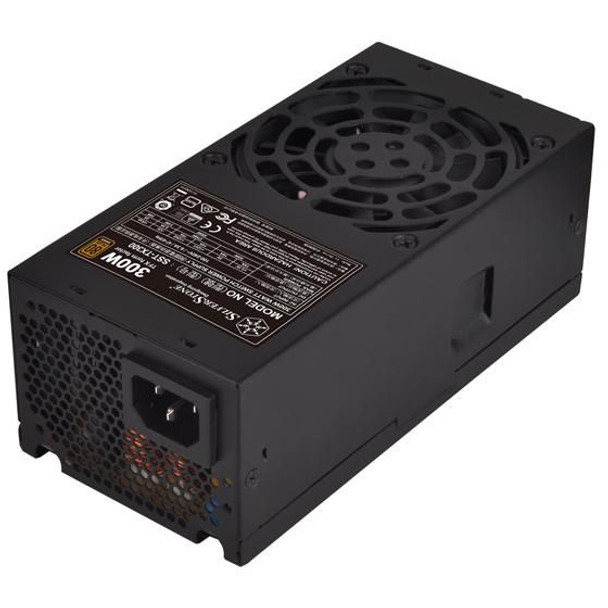

Silverstone SST-TX300 Tx300 Power Supply Unit 300 W SST-TX300

As a leading brand in small form factor (SFF) case design and power supply miniaturization, SilverStone launched its first TFX power supply, the TX300, to further widen the scope of SFF design possibilities. It has features that enthusiasts demand such as all black exterior coating, sleeved cables, silent running 80mm fan, and support for PCI-E 6pin connector. In addition to 80 PLUS Bronze level efficiency, the TX300 features 24/7 40? continuous 300W output capability to provide reliable and high-performing system operation.

- Support standard TFX form factor
- 300W continuous power output at 40�C operating temperature rated for 24/7 operation
- High efficiency with 80 PLUS Bronze certification
- Silent running 80mm fan with 18 dBA minimum
- Single PCI-E 6pin connectors support
- Active PFC

Design



Fan diameter



8 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



80 PLUS certification



80 PLUS Bronze


Mean time between failures (MTBF)



100000 Hour


Noise level



18 dB


Power supply unit (PSU) form factor



TFX


Purpose



PC


Ports & interfaces



EPS power connector (8-pin)



Yes


Floppy disk drive cable length



35 cm


Floppy drive power connector



1


Motherboard power cable length



35 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



4


PCI Express power cable length



35 cm


PCI Express power connectors (6-pin)



1


Peripheral (Molex) power cable length



150, 350


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



150, 350


Power



AC input frequency



47 - 63 Hz


AC input voltage



90 - 264 V


Combined power (+12V)



276 Watt


Combined power (+3.3V)



95 Watt


Combined power (+5V)



95 Watt


Efficiency



85 %


Max output current (-12V)



0.3 A


Max output current (+12V1)



14 A


Max output current (+12V2)



15 A


Max output current (+3.3V)



15 A


Max output current (+5V)



16 A


Max output current (+5Vsb)



2 A


Power factor



0.9


Power Factor Correction (PFC) type



Active


Power protection features



Over power, Over voltage, Short circuit


Total power



300 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



17.5 cm


Product Height



6.5 cm


Product Width



8.5 cm


Vendor information



Brand Name


Silverstone


Warranty



1 Year(s)
