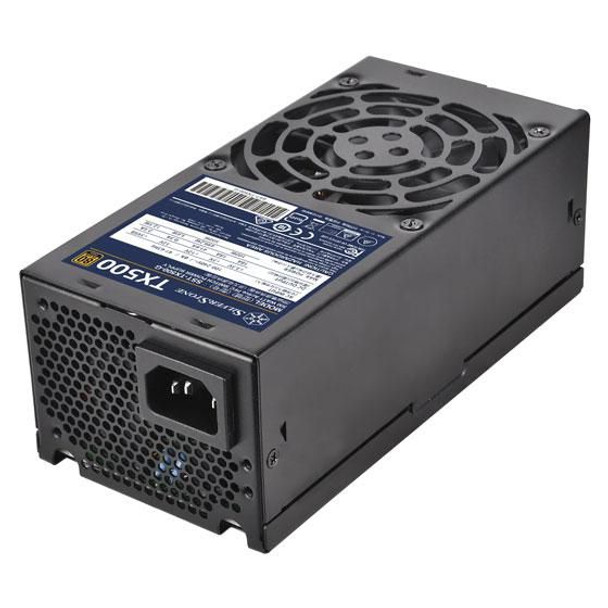

Silverstone SST-TX500-G Tx500 Gold Power Supply Unit SST-TX500-G

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

Built-in 80mm fan has excellent airflow and low noise, perfect for quiet home or office use.

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

Design



Cooling type



Active


Fan diameter



8 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Quantity per pack



1 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



1.79 kg


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.4


Mean time between failures (MTBF)



100000 Hour


Noise level



18 dB


Power supply unit (PSU) form factor



TFX


Purpose



PC


Ports & interfaces



CPU power cable length



45 cm


CPU power connector (4+4 pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power cable length



35 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



4


PCI Express power connectors (6+2 pin)



1


Peripheral (Molex) power connectors (4-pin)



2


Power



AC input frequency



47 - 63 Hz


AC input voltage



90 - 264 V


Combined power (+12V)



499.2 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Max output current (-12V)



0.3 A


Max output current (+12V)



41.6 A


Max output current (+3.3V)



18 A


Max output current (+5V)



18 A


Max output current (+5Vsb)



2.5 A


Power factor



0.9


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



500 Watt


Product dimensions



Net Weight (Product, kg)



1.38 kg


Product Depth



17.5 cm


Product Height



6.5 cm


Product Width



8.5 cm


Vendor information



Brand Name


Silverstone


Warranty



1 Year(s)
