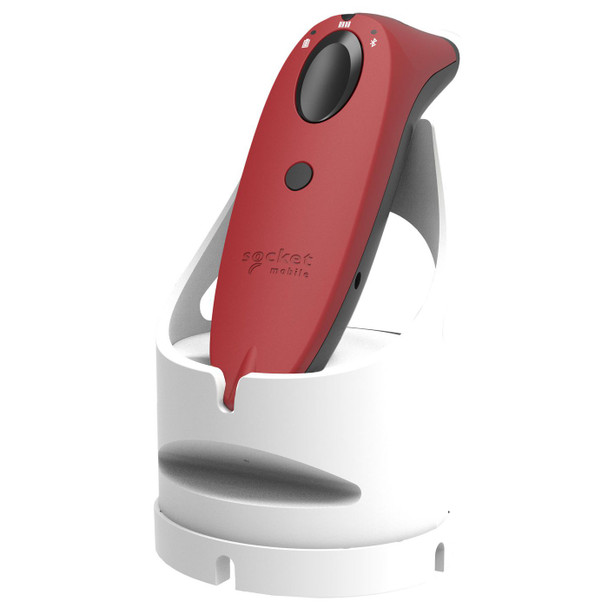

Socket CX3528-2130 SocketScan S740 CX3528-2130

The SocketScan S740 universal barcode scanner with Bluetooth wireless technology scans either 1D or 2D barcodes on paper or screen. It has a lightweight, ergo�nomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.

This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.

Application Integration � Socket Mobile�s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.

Design



LED indicators



Battery replacement, Bluetooth


Product colour



Red, White


RoHS compliance



Yes


Operational conditions



Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



15 cm


Gross Weight (Package, kg)



0.54 kg


Height (package,cm)



8.26 cm


Width (package,cm)



12 cm


Packaging data



Charging base



Yes


Performance



LED indicators



Battery replacement, Bluetooth


Product colour



Red, White


RoHS compliance



Yes


Ports & interfaces



Bluetooth version



2.1+EDR


Connectivity technology



Wireless


Standard interfaces



Bluetooth


Wireless range



10 m


Power



Battery capacity



2000 mAh


Battery life



20 Hour


Battery technology



Nickel-Metal Hydride (NiMH)


Battery type



AA


Charging time



6 Hour


Number of batteries supported



2


Number of reads per charge



70000


Power source type



Battery


Product dimensions



Net Weight (Product, kg)



0.49 kg


Product Depth



15 cm


Product Height



8 cm


Product Width



12.7 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code


Light levels (direct sunlight)



0 - 100000 lx


Linear (1D) barcodes supported



Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), U.P.C.


Optical sensor resolution (W x H)



640 x 400 Pixels


Scanner type



2D


Sensor type



LED


Type



Handheld bar code reader


Wavelength



610 nm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Socket


Warranty



1 Year(s)
