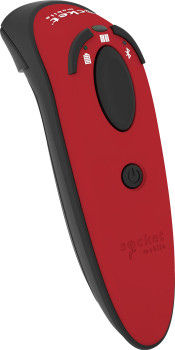

Socket CX3738-2390 DuraScan D730. Laser. Red CX3738-2390

The DuraScan D730 v20 is the latest and improved version of our laser Bluetooth� barcode scanner. Built for mobility, the D730 v20 has been redesigned for improved durability. It is IP54 compliant, ideal for warehousing and manufacturing application customers. In addition, Socket Mobile has added a field-replaceable battery based on customer feedback. The scanner is MFi certified and fully compatible with Android and Windows with Capture SDK versions available.

The D730 has a class 2 laser that scans through plastic or glass, in bright or poor lighting conditions, sideways, upside down, or straight at imperfect barcodes. It features great ergonomics, designed for comfort and extended use; it is light, highly durable and small enough to fit in your pocket. The D730 is fully backwards compatible with prior versions of Socket Mobile�s SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D730 v20, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.

Design



International Protection (IP) code



IP54


LED indicators



Y, Yes


Product colour



Red


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



84716070


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-20 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Performance



International Protection (IP) code



IP54


LED indicators



Y, Yes


Product colour



Red


RoHS compliance



Yes


Ports & interfaces



Bluetooth version



2.1+EDR


Connectivity technology



Wireless


Standard interfaces



Bluetooth


Wireless range



30 m


Power



Battery capacity



1500 mAh


Battery life



26 Hour


Battery technology



Lithium-Ion (Li-Ion)


Charging time



8 Hour


Number of reads per charge



90000


Power source type



Battery


Product dimensions



Net Weight (Product, kg)



0.109 kg


Product Depth



4.01 cm


Product Height



13.22 cm


Product Width



3.71 cm


Scanning



2D (matrix & stacked) barcodes supported



Not supported


Light levels (direct sunlight)



4800 - 86000 lx


Linear (1D) barcodes supported



Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISBN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, POSTNET, Plessey, Telepen, UPC-A, UPC-E


Scanner type



1D


Sensor type



Laser


Type



Handheld bar code reader


Technical details



Harmonized System (HS) code



84716070


Sustainability certificates



RoHS


Vendor information



Brand Name


Socket
