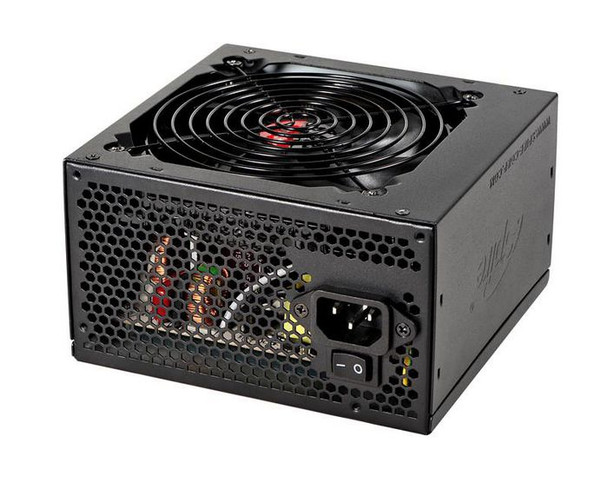

Spire SP-ATX-600Z-PPFC Pearl 600 Power Supply Unit SP-ATX-600Z-PPFC

The PEARL series are the new and evolved ATX power supply series aimed at system builders and integrators. Equipped with well selected high-quality components, supplying optimal power under the most demanding circumstances. New highlights of the PEARL series are: Version 2.31 specification compliant, advanced circuit design with better Japanese grade A capacitors and components supporting the newest Intel & AMD multi-core micro-processors. Auto-thermal fan control, maximizing the Pearl�s cooling performance whilst maintaining reduced sound levels. Energy sufficient, PEARL series power supplies are compatible with the Energy Star & EUP energy saving standards. Housed in cool black powdered coated enclosures with embossed Spire logo, the Pearl series are backed by the award winning service program and 2 years manufacturer warranty. Spire � Powered by Innovation.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



96 cm


Master (outer) case length



206 cm


Master (outer) case width



261 cm


Products per master (outer) case



10 pc(s)


Operational conditions



Operating temperature (T-T)



-20 - 70 �C


Storage temperature (T-T)



-20 - 70 �C


Other features



Housing colour



Black


Noise level (silent mode, 30%)



16 dB


Package dimensions



Depth (package,cm)



26 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



9.6 cm


Width (package,cm)



20 cm


Performance



ATX version



2.31


Certification



CE/RoHS/REACH/EUP6


Noise level



21 dB


Power supply unit (PSU) form factor



ATX


Silent mode



Yes


Ports & interfaces



Motherboard power cable length



50 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



4


Peripheral (Molex) power connectors (4-pin)



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Efficiency



80 %


Hold time



16 Millisecond


Power Good signal delay range



100 - 500 Millisecond


Power protection features



Over current, Over power, Overload, Short circuit


Total power



600 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.5 cm


Product Width



14 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Spire


Warranty



1 Year(s)
