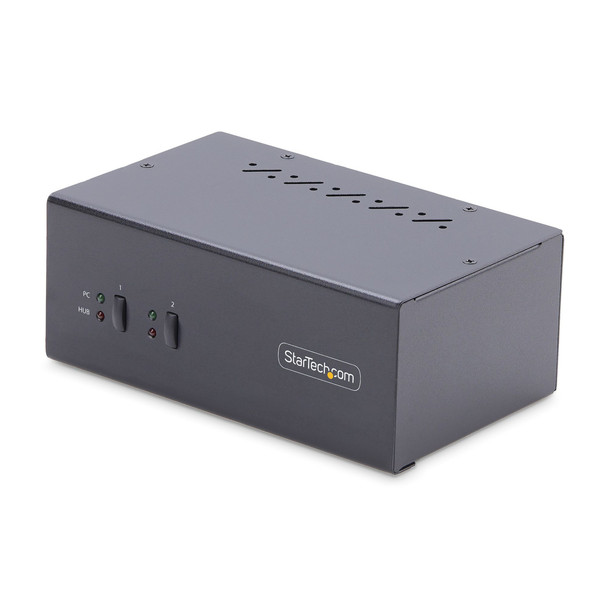

Startech 2-Port Dual-Monitor DisplayPort KVM Switch 4K 60Hz 2x USB 5Gbps Hub Por P2DD46A2-KVM-SWITCH

Share a mouse, keyboard, and dual 4K 60Hz DisplayPort displays between two DisplayPort-enabled computers, using two USB 3.2 Gen 1 hub portsThis Dual-Monitor KVM Switch enables users to switch between two desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.Fast Switching with USB EmulationUSB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.Dual-4K 60Hz Displays & USB 5Gbps Hub PortsThis TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.Customizable SwitchingThis Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility: Setup and save custom windows layouts. MAC Address Pass-Through Utility: Improve network security. USB Event Monitoring Utility: Track and log connected USB devices. Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage

Features


FAST SWITCHING: USB Emulation enables fast switching of a keyboard, video, and mouse between two DisplayPort and USB-A enabled desktops; USB Emulation ensures compatibility with combo keyboards/mice, as well as keyboards featuring additional function keys


DUAL 4K 60HZ & USB 5GBPS: TAA Compliant DisplayPort 1.2 KVM Switch supports up to two 4K 60Hz DisplayPort monitors with two USB 3.2 Gen 1 (5Gbps) Hub Ports and two USB 2.0 HID Ports; Ideal for CAD/CAM, video editing, and content creation applications


MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other


DURABLE DESIGN: A durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection


OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts



Design


Push button

Yes


Mean time between failures (MTBF)
3052 h


Product colour

Black


Hot keys

Yes


Maximum cable length

7.5 m


Rack mounting

No


LED indicators

Yes



Weight & dimensions


Height

66 mm


Width
0 mm


Depth
3 mm


Weight

800 g



Packaging content


Quick installation guide

Yes



Logistics data


Master (outer) case width

554 mm


Master (outer) case height

213 mm


Products per master (outer) case

6 pc(s)


Master (outer) case length

495 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

RoHS



Other features


IP control

No



Operational conditions


Operating temperature (T-T)

0 - 40 -C


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 60 -C



Ports & interfaces


Audio connections

Yes


DisplayPort version

1.2


Keyboard port type

USB


Headphone outputs

3


Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A


DisplayPorts quantity

4


Number of computers controlled

2


Number of microphone inputs

3


Mouse port type

USB


Video port type

DisplayPort


DC-in jack

Yes


Console USB ports quantity

4


Console DisplayPorts ports quantity

2



Performance


Maximum resolution

3840 x 2160 pixels


Scan interval
,20,30,40,50,60 s


Data transfer rate (max)

5 Gbit/s


HD type

4K Ultra HD


Plug and Play

Yes


Daisy chain

No



Power


AC input voltage
0 - 240 V


Output voltage
V


Input current

1 A


Power source

DC


Compatible power plug types

EU, JP, UK, US


Output current

3 A



Display


Built-in display

No


On Screen Display (OSD)

No



Packaging data


Package height
2 mm


Package depth

270 mm


Package width
0 mm


Package weight

1.3 kg
