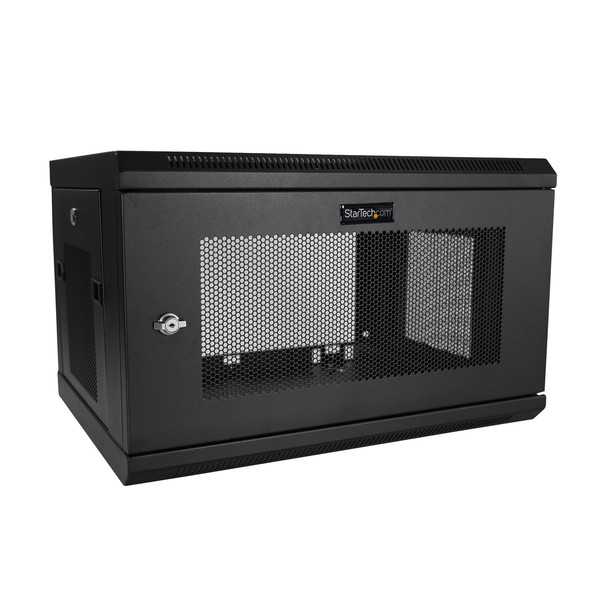

Startech 2 Post 6U 19" Wall Mount Network Cabinet - 15" Deep Locking IT Switch D RK616WALM

Use this wall mount network cabinet to mount your server or networking equipment to the wall

This 6U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features a mounting depth up to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.

Easily install your servers and network equipment

The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

The 6U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you'll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The RK616WALM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 6U 2 POST SECURE RACK: This locking wall mount network cabinet enclosure is designed to protect critical network equipment from damage and is lockable to prevent unauthorized access
- DURABLE: This SPCC cold rolled steel data/network equipment cabinet holds up to 200 lb (90 kg) and can support depth of 14.6in and comes with a movable vented 1U shelf
- SPECS: 6U 19" Enclosed cabinet

Features


2-Post 6U RACK CABINET: Wall-Mount Server Rack with a maximum mounting depth of 15.0" (38.0cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room


EASY ACCESS: Wall-mount data rack features an enclosed and lockable rack design with easy access to the rear of the mounted devices; Small locking server cabinet with reversible and removable front door and removable side panels


BUILT TO LAST: The 6U wall-mounted network cabinet is constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg)


FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant


DESIGNED FOR COOLING: Vented IT rack enclosure has mesh front doors and side panels to provide fresh airflow and supports active cooling with up to four optional 120mm fans (ACFANKIT12)



Weight & dimensions


Mounting depth (max)

37.5 cm


Height

371 mm


Width

600 mm


Depth

450 mm


Weight

17.6 kg


Inner width

59.4 cm


Inner depth

45 cm



Logistics data


Master (outer) case width

525 mm


Master (outer) case height

450 mm


Products per master (outer) case

1 pc(s)


Harmonized System (HS) code

85381000


Master (outer) case length

675 mm



Technical details


Sustainability certificates

RoHS



Other features


Compliance industry standards

EIA/ECA-310-E



Features


Side panel key lock

Yes


Product colour

Black


Cable management

Yes


Material

Steel


Product design

2-post


Side panel construction

Steel


Back door construction

Steel


Front door key lock

Yes


Rack capacity

6U


Certification

CE, REACH


Key lock

Yes


Type

Wall mounted rack


Removable front door

Yes


Frame type

Closed


Maximum weight capacity

90 kg


Front door construction

Steel



Packaging data


Package height

450 mm


Package depth

675 mm


Package width

525 mm


Package weight

19.6 kg


Manual

Yes


Nuts included

Yes


Number of screws

24


Number of nuts

24


Screws included

Yes
