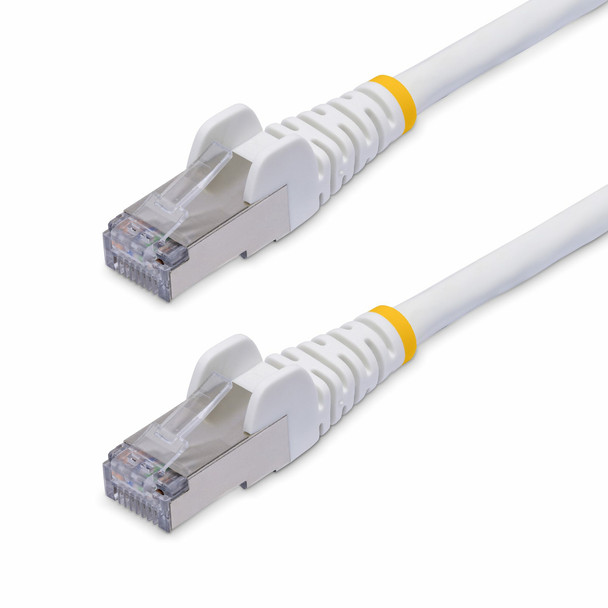

Startech 3m White CAT8 Ethernet Cable - LSZH NLWH-3M-CAT8-PATCH

Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 CableConnect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.Pure Bare Copper WireOur Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.Durable ConstructionThe Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.Versatile DependabilityThe Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Our Snagless Cat8 cables are Fluke channel tested for guaranteed Cat8 performance.The StarTech.com Advantage

Features


CAT8 ETHERNET CABLE: Snagless S/FTP Cat8 cable is optimized for enterprise 25/40Gbps networks; 2000MHz frequency range enhances throughput capacity; Up to 4 times faster than Cat6a; Supports Power over Ethernet (PoE++) devices up to 100W


QUALITY CONSTRUCTION: Shielded 50-micron gold-plated connectors enable a precise fit to minimize wear and signal loss; Rated beyond 750 insertions; 26AWG pure bare copper wire with braided shield enhance EMI protection for consistent throughput and power


SAFETY AND RELIABILITY: Fluke channel tested for guaranteed Cat8 performance; PoE++ specifications complies with IEEE 802.3bt Type 4; Low Smoke Zero Halogen (LSZH) jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted


APPLICATIONS: Ideal for high density 25/40GBASE-T enterprise network deployments and switches; Connect reliably to critical PoE devices such as IP cameras and Access Points; Flexible LSZH jacket withstands -/+90deg bends and easily routed through tight spaces


SPECS: 3-meter; White; Snagless; 10/25/40Gbps; 2000 MHz; 100W PoE++; S/FTP; 26AWG Pure Bare Copper Wire; Al-Mylar w/Braided Shield; Gold-Plated Connectors; LSZH Jacket; 5.6mm (0.22in) Cable O.D.; Fluke Channel Tested; Supports Cat 6/6a and Cat 5/5e



Weight & dimensions


Outer diameter

5.6 mm



Logistics data


Master (outer) case width

380 mm


Master (outer) case height

290 mm


Products per master (outer) case

70 pc(s)


Master (outer) case length

430 mm



Features


Connector shielding

Yes


Cable length

3 m


Connector 2

RJ-45


Connector 1

RJ-45


Power over Ethernet (PoE)

Yes


Cable shape

Round


Connector contacts plating

Gold


Cable shielding

S/FTP (S-STP)


Data transfer rate

40000 Mbit/s


Cable standard

Cat8


Power over Ethernet (PoE) type supported

PoE++ (4PPoE)


Jacket material

Low smoke zero halogen (LSZH)


Conductor type

Solid


Conductor material

Copper


Networking standards

IEEE 802.3ba


Snagless cable boot

Yes


Product colour

White


Connector 1 gender

Male


Connector 2 gender

Male


AWG wire size

26


Certification

TIA/EIA-T568B


Connector 1 form factor

Straight


Total Power over Ethernet (PoE) budget

100 W


Connector 2 form factor

Straight


Frequency

2000 MHz


Ethernet interface type

25 Gigabit Ethernet, 40 Gigabit Ethernet


Cabling technology

40GBase-T



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Operating relative humidity (H-H)

0 - 85


Storage temperature (T-T)

-20 - 60 �C



Packaging data


Package height

20 mm


Quantity per pack

1 pc(s)


Package depth

220 mm


Package width

190 mm


Package weight

131 g
