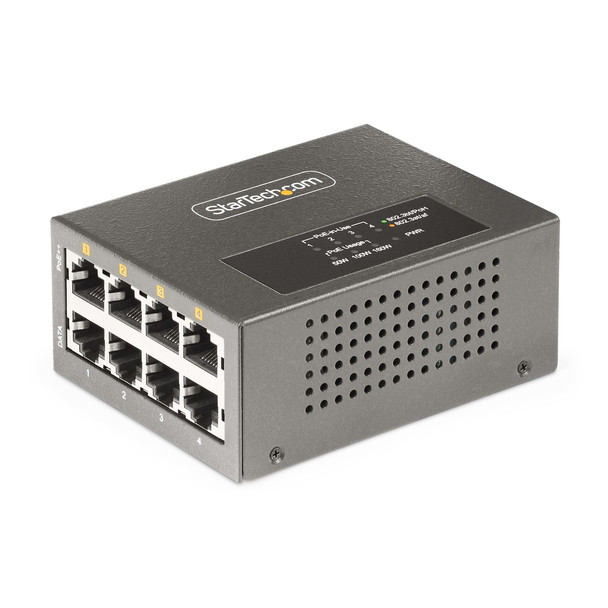

Startech 4-Port Multi-Gigabit PoE++ Injector 5/2.5G Ethernet NBASE-T PoE/PoE+/Po AS445C-POE-INJECTOR

Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injectorThis 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ).Versatile PoE InjectorMultiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage.Experience streamlined cable management with all network cables routed from one side of the unit for a clean and organized setup.Flexible Power OptionsTailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter.The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures.Increased Network SpeedsThe unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access.The StarTech.com Advantage

Features


4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection


SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts


MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment


RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports


STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system



Weight & dimensions


Height

39 mm


Width

70 mm


Depth

94 mm


Weight

278 g



Packaging content


Number of products included

1 pc(s)


Quick installation guide

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

475 mm


Master (outer) case height

325 mm


Products per master (outer) case
pc(s)


Master (outer) case length

370 mm



Technical details


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), UKCA



Network


Networking standards

IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u


Cable types supported

Cat5e, Cat6, Cat6a


Chipset

Microsemi - PD69208T4, Microsemi - PD69200R


Power over Ethernet (PoE)

Yes


Auto MDI/MDI-X

Yes


Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet


Ethernet LAN data rates
,100,1000,2500,5000 Mbit/s



Features


Maximum operating distance
0 m


Jumbo frames

9000


Product colour

Grey


Wall mountable

Yes


Housing material

Metal


Jumbo frames support

Yes


LED indicators

Status



Operational conditions


Operating temperature (T-T)

0 - 50 °C


Operating relative humidity (H-H)

5 - 95


Storage relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-10 - 70 °C



Ports & interfaces


RJ-45 output ports

4


Ethernet LAN (RJ-45) ports

8


RJ-45 input ports

4


DC-in jack

Yes



Power


Total Power over Ethernet (PoE) budget
0 W


AC adapter output voltage

54 V


Input current

2.5 A


AC adapter input voltage
0 - 240 V


Output current

3.3 A



Packaging data


Package height

90 mm


Package depth

300 mm


Package width
0 mm


Package weight

1.7 kg
