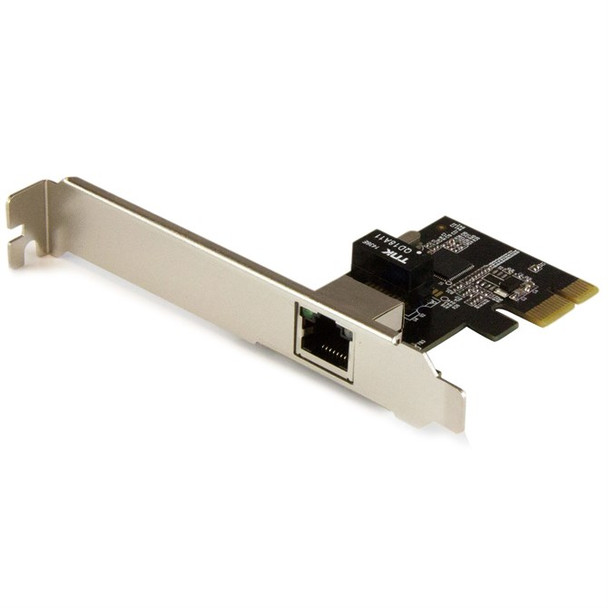

StarTech.com 1-Port Gigabit Ethernet Network Card - PCI Express Intel I210 NIC ST1000SPEXI

Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.

The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel� I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.

A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.

Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features


Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot


Intel I210-AT chipset


PXE network boot


Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab


Auto MDIX support


Auto negotiation support


Wake-On-LAN support


Up to 9K Jumbo Frame support


IEEE802.3az Energy Efficient Ethernet (EEE)


Supports IEEE 802.1Q VLAN tagging



Design


Chipset

Intel� I210-AT


Product colour

Black, Metallic


Internal

Yes


Component for

PC/Server


LED indicators

Activity



Weight & dimensions


Height

18 mm


Width

66 mm


Depth

120 mm


Weight

38 g



Packaging content


Mounting brackets included

Yes


Manual

Yes



Logistics data


Master (outer) case width

304 mm


Master (outer) case height

357 mm


Products per master (outer) case

80 pc(s)


Harmonized System (HS) code

85176990


Master (outer) case length

592 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Network


Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Wake-on-LAN ready

Yes


Auto MDIX IEEE

Yes


Auto-negotiation

Yes


VLAN tagging

Yes


Ethernet LAN

Yes


Maximum data transfer rate

2000 Mbit/s


Full duplex

Yes


Jumbo frames support

Yes


Cabling technology

10/100/1000BaseT(X)


Ethernet LAN data rates

10,100,1000 Mbit/s



Operational conditions


Operating temperature (T-T)

5 - 50 �C


Operating relative humidity (H-H)

20 - 80


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


Host interface

PCI Express


Ethernet LAN (RJ-45) ports

1


Connectivity technology

Wired


Interface

Ethernet



System requirements


Server operating systems supported

Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Linux operating systems supported

Yes



Packaging data


Package height

28 mm


Package depth

170 mm


Package width

142 mm


Package weight

100 g
