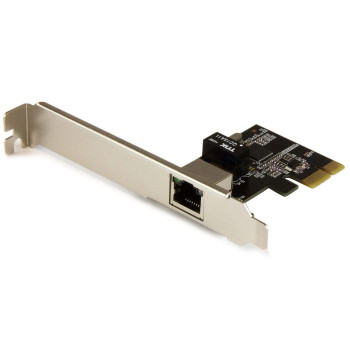

StarTech.com 1-Port PCI Express PCIe Gigabit NIC Server Adaptor Low Profile Netw ST1000SPEX2L

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket

Features


A single 10/100/1000Mbps compatible RJ45 Ethernet port


Gigabit detection and Link/Activity LED indicators


Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards


Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control


Jumbo Frame support


Full and half duplex support


Supports Wake-on-LAN function


Crossover Detection & Auto-Correction (Auto MDI/MDI-X)



Design


Chipset

Realtek - RTL8111H


Internal

Yes


Certification

CE, FCC, REACH


LED indicators

Activity, Link



Weight & dimensions


Height

49 mm


Width

18 mm


Depth

70 mm


Weight

27 g



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Auto MDIX IEEE

Yes


Jumbo frames

9000


Supported network protocols

CSMA/CD


Ethernet LAN

Yes


Maximum data transfer rate

1000 Mbit/s


Full duplex

Yes


Jumbo frames support

Yes


Cabling technology

10/100/1000BaseT(X)


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Link/Act LED

Yes


Power LED

Yes



Operational conditions


Operating temperature (T-T)

0 - 70 �C


Operating relative humidity (H-H)

10 - 90


Storage temperature (T-T)

0 - 100 �C



Ports & interfaces


Host interface

PCI Express


Connectivity technology

Wired


Interface

Ethernet



System requirements


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Mac operating systems supported

Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Linux operating systems supported

Yes



Packaging data


Package height

31 mm


Package depth

144 mm


Package width

173 mm


Package weight

125 g
