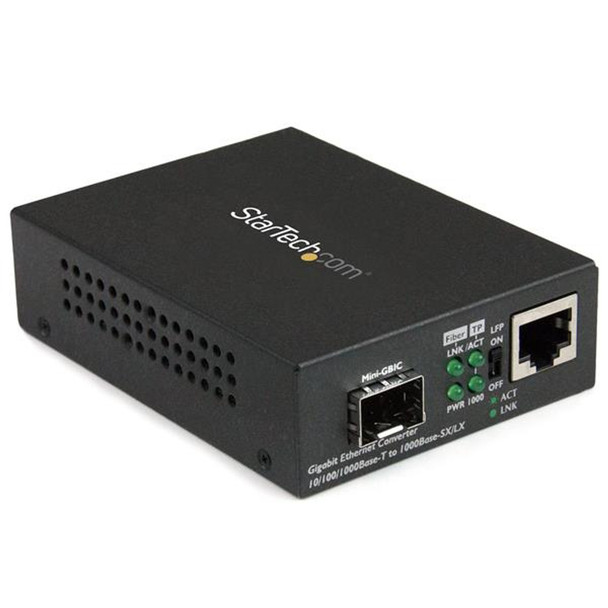

StarTech.com 10/100/1000 Mbps Gigabit Ethernet Fiber Media Converter - Open SFP MCM1110SFP

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network

Features


Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively


Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver


10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network


Compact standalone design and wall mounting option for easy and convenient installation


Link Fault Pass (LFP) supported


Durable metal housing


Auto MDIX


9K Jumbo Frame supported



Design


Internal

No


Product colour

Black


Housing material

Steel


Certification

CE, FCC


LED indicators

Activity, Link, Power



Weight & dimensions


Height

26 mm


Width

70 mm


Depth

95 mm


Weight

185 g



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

85176990



Technical details


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z


Converter output interface

1000Base-LX, 1000Base-SX


Converter input interface

1000Base-T, 100Base-TX, 10Base-T


Duplex system

Full


Maximum data transfer rate

1000 Mbit/s


Auto MDI/MDI-X

Yes


Ethernet interface type

Gigabit Ethernet


Jumbo frames support

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Operating relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-10 - 70 �C



Ports & interfaces


Fiber ports quantity

1


Ethernet LAN (RJ-45) ports

1


Fiber optic connector

SFP


DC-in jack

Yes


Connectivity technology

Wired



Performance


Fiber mode structure

Multi-mode, Single-mode


Mean time between failures (MTBF)

50000 h


Wavelength-division multiplexing (WDM)

Yes



Power


Input voltage

100 - 240 V


External power adapter

Yes


Output voltage

5 V


Power consumption (typical)

5 W


Power plug type

Type N


Input current

1 A


Power over Ethernet (PoE)

No


Output current

2 A



Packaging data


Package height

68 mm


Package depth

139 mm


Package width

284 mm


Package weight

544 g
