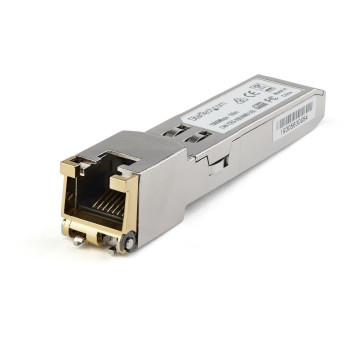

StarTech.com 1000Base-T SFP Transceiver Module - GLC-TE Compatible GLCTEST

1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime WarrantyThe GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco- brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).Technical Specifications:- Maximum Data Transfer Rate: 1000 Mbps- Type: Copper- Connection Type: RJ45 Connector- Maximum Transfer Distance: 100 m (328 ft)- MTBF: 4,655,371 hours- Power Consumption: Less than 1.3 Watts- Digital Diagnostics Monitoring (DDM): NoThis SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

Features

0% CISCO GLC-TE COMPATIBLE SFP Transceiver: Works with Cisco switches like Cisco C1000, C2960S, C3560, C3750, C9400, C9500, N3500, N2000, N5000, N7000, N7700, UCSB, IE2000, Firepower, ISR4000, etc.


FOR EXTENDED TEMPERATURES: 1G Industrial SFP rated to work in extreme environments from -40-C to +85-C (-40-F to 185-F) and works with CAT5 / CAT6 cabling for a less expensive cabling alternative.


TECHNICAL SPECS: 1000BASE-T /Gigabit Ethernet / 1 Gbps / Cat 5e / Cat6 Copper / RJ45 connector / SFP to LAN / Extended Temperature Support up to +85-C / distances up to 100m (328 ft).


THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance



Weight & dimensions


Height
mm


Width
mm


Depth

65 mm


Weight

72 g



Logistics data


Master (outer) case width

344 mm


Master (outer) case height

255 mm


Products per master (outer) case

36 pc(s)


Master (outer) case length

295 mm


Harmonized System (HS) code

85369010



Technical details


Sustainability certificates

RoHS



Features


Mean time between failures (MTBF)

4655371 h


Product colour

Silver


Hot-swap

Yes


Brand compatibility

Cisco


Compatible products

C1000, C2960S, C3560, C3750, C9400, C9500, N3500, N2000, N5000, N7000, N7700, UCSB, IE2000, Firepower, ISR4000


Certification

CE, FCC, REACH



Operational conditions


Operating temperature (T-T)

-40 - 85 -C


Operating relative humidity (H-H)

30 - 75


Storage temperature (T-T)

-40 - 85 -C



Performance


Networking standards

IEEE 802.3


Copper ethernet cabling technology
00BASE


Digital Diagnostics Monitoring (DDM)

No


SFP transceiver type

Copper


Maximum data transfer rate
50 Mbit/s


Interface type

SFP


Maximum transfer distance
0 m



Power


Power consumption (typical)

1.3 W



Packaging data


Number of products included

1 pc(s)


Package height

31 mm


Package depth
5 mm


Package width

90 mm


Package weight

50 g
