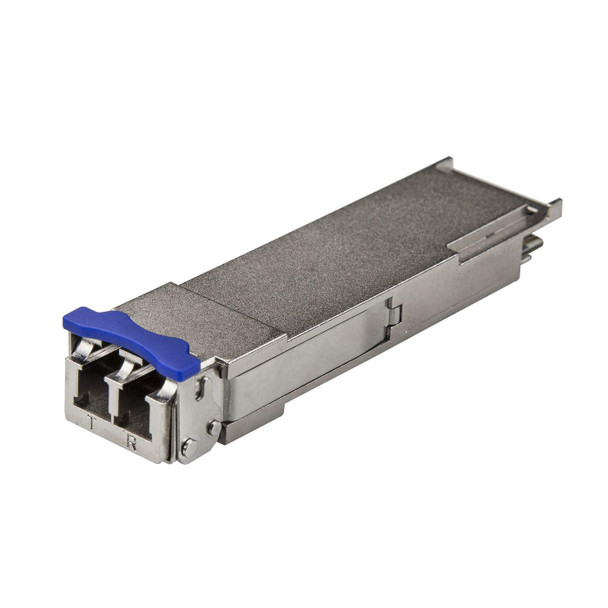

StarTech.com 10320-ST Extreme Networks 10320 10320-ST

40 Gbps | Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe 10320-ST is an Extreme Networks� 10320 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:� Wavelength: 1270nm to 1330nm� Maximum Data Transfer Rate: 40 Gbps� Type: Single Mode� Connection Type: LC Connector� Maximum Transfer Distance: 10 km (6.2 mi)� MTBF: 95,832,026 hours� Power Consumption:This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

Features



Brand compatibility



Extreme Networks


Certification



CE, FCC, UR


Compatible products



10320


Hot-swap



Yes


Mean time between failures (MTBF)



95832026 Hour


Product colour



Silver


Logistics data



Harmonized System (HS) code



85369010


Master (outer) case height



35 cm


Master (outer) case length



42 cm


Master (outer) case width



34 cm


Products per master (outer) case



100 pc(s)


Package dimensions



Depth (package,cm)



11.5 cm


Gross Weight (Package, kg)



0.03 kg


Height (package,cm)



3.1 cm


Width (package,cm)



9 cm


Packaging data



Number of products included



1 pc(s)


Performance



Digital Diagnostics Monitoring (DDM)



No


Duplex system



Full


Fiber optic connector



LC


Interface type



QSFP+


Maximum data transfer rate



41250 Mbit/s


Maximum transfer distance



10000 m


Multi-mode fiber (MMF) supported



No


SFP transceiver standard



LR4


SFP transceiver type



Fiber optic


Single-mode fiber (SMF) supported



Yes


Tx wavelength (max)



1330 nm


Tx wavelength (min)



1270 nm


Power



Power consumption (typical)



2.5 Watt


Product dimensions



Net Weight (Product, kg)



0.02 kg


Product Depth



7.2 cm


Product Height



1.3 cm


Product Width



1.83 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
