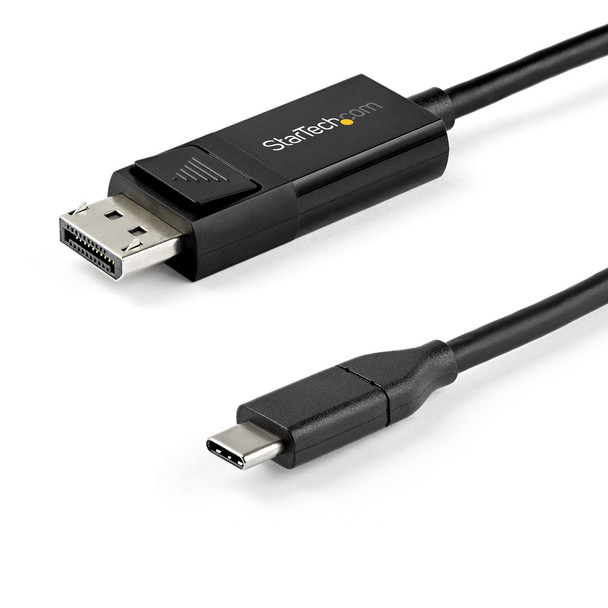

StarTech.com 1m USB-C to DisplayPort 1.4 Cable - Bi-Directional CDP2DP141MBD

USB Type-C� Adapter Cable | 8K 60Hz | Thunderbolt 3� | HBR3This USB-C� to DisplayPort� 1.4 cable lets you connect your USB Type-C� (or Thunderbolt 3�) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.Unparalleled Performance with Support for 8K 60HzSupporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680�4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.IT Pro PerformanceThis adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.Easy & Clutter-Free InstallationAt 3.3 ft. (1 m) in length, this bi-directional adapter cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For longer installations, we also offer a 6.6 ft. (2 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.Convenient, Bi-Directional SupportUse this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.CDP2DP141MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.Note:� Your USB-C device must support DP Alt Mode to work with this cable.� To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.� This cable is not compatible with the Surface Dock 2The StarTech.com Advantage

Features


HIGH PERFORMANCE: 3.3ft/1m reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4; DisplayPort to USB-C bidirectional cord; Thunderbolt 3/4 compatible


REVERSIBLE CABLE: When connecting a USB-C computer to a DisplayPort monitor, the computer must support USB-C DisplayPort Alternative mode (DP alt-mode); When connecting a DisplayPort computer to a USB-C monitor, the monitor must have its own power supply


IMAGE QUALITY: This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables; The amplifier also increases the max. supported DP cable length compared to other brands


DP OR USB-C MONITOR COMPATIBLE: Use this DisplayPort to USB-C cable to convert from a DP host to a USB-C monitor; supports USB-C 16:9 & ultrawide monitors; NOTE: Does not support portable displays / monitors that do not have an independent power supply


INTEGRATED VIDEO ADAPTER CABLE: Supports driverless setup on any OS, minimizes failure points & signal loss, and features latching DP connector to ensure a reliable & consistent connection; NOTE: It is recommended to connect the USB-C connector first



Weight & dimensions


Weight

46 g



Logistics data


Master (outer) case width

325 mm


Master (outer) case height

210 mm


Products per master (outer) case

100 pc(s)


Harmonized System (HS) code

84733080


Master (outer) case length

500 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Features


Chipset

Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170


Maximum resolution

7680 x 4320 pixels


DisplayPort version

1.4


Supported graphics resolutions

3840 x 2160, 7680 x 4320


Maximum refresh rate

120 Hz


Cable length

1 m


High Dynamic Range (HDR) supported

Yes


Product colour

Black


Connector 2

DisplayPort


HDCP

Yes


Connector 1

USB Type-C


Connector 1 gender

Male


Connector 2 gender

Male


HDCP version

1.4/2.2


Connector 1 form factor

Straight


USB Type-C DisplayPort Alternate Mode

Yes


Connector 2 form factor

Straight


Converter type

Active video converter


Supported audio channels

7.1



Operational conditions


Operating temperature (T-T)

0 - 45 �C


Operating relative humidity (H-H)

10 - 85


Storage temperature (T-T)

-10 - 70 �C



Packaging data


Package height

15 mm


Quantity per pack

1 pc(s)


Package depth

125 mm


Package width

225 mm


Package weight

50 g
