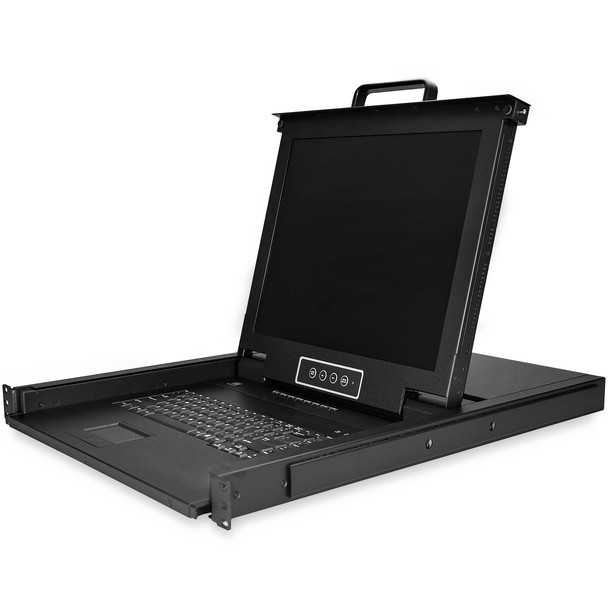

StarTech.com 1U 17 " 8-Port Folding Rackmount KVM Console Black RKCONS1708K

"KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

Providing centralized control of up to eight servers, this 8-port rackmount KVM console?gives you?easy access?to your?systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution?

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This?8-port?KVM console?comes with everything?you need to set up right out of the box:?

8 VGA KVM Cables

Mounting Rails

M5 Cage Nuts and Screws

Simple System Integration

With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support

The StarTech.com Advantage

- TECH SPECIFICATIONS: Rackmount KVM Console, 17"" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22"" [56 cm] to 35"" [90 cm] (incl. mounting hardware)"

Features


TECH SPECIFICATIONS: Rackmount KVM Console, 17"" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0


PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan


INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22"" [56 cm] to 35"" [90 cm] (incl. mounting hardware)


HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours


TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support



Weight & dimensions


Mounting depth (max)

90 cm


Mounting depth (min)

56 cm


Height

619 mm


Width

448 mm


Depth

43 mm


Weight

17 kg



Packaging content


Cables included

KVM


Cage nuts included

Yes


Manual

Yes


Included power plug types

ANZ, EU, JP, NA, UK


Number of screws

8


Number of cage nuts

8


Screws included

Yes



Logistics data


Master (outer) case width

767 mm


Master (outer) case height

182 mm


Products per master (outer) case

1 pc(s)


Master (outer) case length

617 mm



Technical details


Key lock

No


Operating relative humidity (H-H)

10 - 80


IP control

No


Mean time between failures (MTBF)

50000 h


Product colour

Black


Material

Steel


Rack mounting

Yes


Rack capacity

1U


Daisy chain

No


LED indicators

Yes


Sustainability certificates

CE, RoHS, UL ECOLOGO



Keyboard


Hot keys

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


VGA (D-Sub) ports quantity

8


Keyboard port type

PS/2


Mouse port type

PS/2


Video port type

VGA


USB 2?0 Type-A ports quantity

2



Power


Power consumption (typical)

13 W


Input current

1.5 A


AC adapter input voltage

100 - 240 V



Display


Display type

LCD


Viewing angle, vertical

160�


On Screen Display (OSD)

Yes


Display diagonal

43.2 cm (17")


Aspect ratio

5:4


Display number of colours

16.78 million colours


Contrast ratio (typical)

1000:1


Response time

5 ms


Display brightness

250 cd/m�


Viewing angle, horizontal

170�


Display resolution

1280 x 1024 pixels


Display

TFT LCD


Pixel pitch

0.264 x 0.264 mm



Packaging data


Package height

182 mm


Package depth

617 mm


Package width

76 mm


Package weight

19.7 kg
