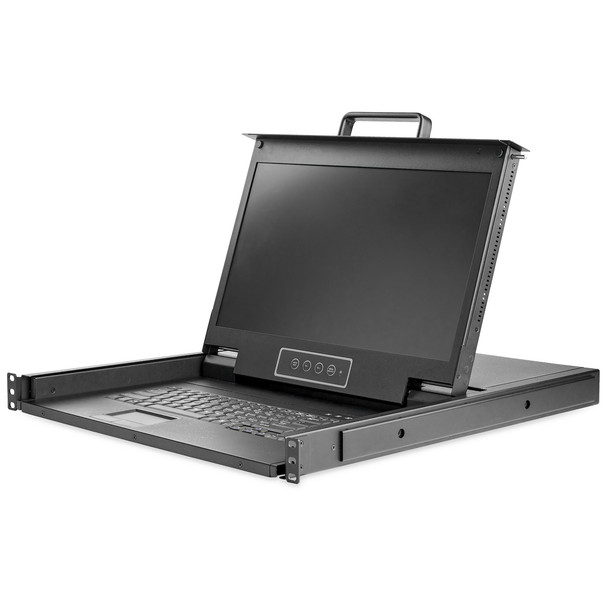

StarTech.com 1U 17 " HD Rackmount 1-Port KVM Console Black RKCONS17HD

Control your server or KVM switch from a centralized HD KVM console

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console also gives you easy access to and visibility of your system while it's mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

High-Definition LCD Monitor

The 1080p KVM console's monitor is 17.3" and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

Clutter-Free Monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Simple Setup

This single-port KVM console comes with everything you need to set up:
1 Audio Cable

1 Set of KVM Cables (VGA)

2 Rear Mounting Brackets

M5 Cage Nuts and Screws

Cost Effective Solution

This KVM console provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- High Definition: Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel is perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- Wide compatibility: This HD KVM console drawer works with virtually any KVM switch brand or model that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- Versatile Interfaces: Rack mount monitor with 17.3" Active Matrix TFT 16:9 widescreen

Features


High Definition: Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel is perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring


Wide compatibility: This HD KVM console drawer works with virtually any KVM switch brand or model that supports VGA and USB interfaces and conveniently slides into the server rack when not in use


Versatile Interfaces: Rack mount monitor with 17.3" Active Matrix TFT 16:9 widescreen


1U height


Single Port


Full keyboard + Trackpad



Weight & dimensions


Mounting depth (max)

85 cm


Mounting depth (min)

51 cm


Height

565 mm


Width

483 mm


Depth

43 mm


Weight
.2 kg



Packaging content


Cables included

KVM


Cage nuts included

Yes


Quick installation guide

Yes


Included power plug types

ANZ, EU, JP, NA, UK


Number of screws

8


Number of cage nuts

8


Screws included

Yes



Logistics data


Master (outer) case width

615 mm


Master (outer) case height
5 mm


Products per master (outer) case

1 pc(s)


Master (outer) case length

765 mm



Technical details


Operating relative humidity (H-H)
- 80


IP control

No


Mean time between failures (MTBF)

50000 h


Product colour

Black


Cable length

1.8 m


Material

Steel


Rack mounting

Yes


Audio support

No


Rack capacity

1U


Daisy chain

No


LED indicators

Power, Status


Sustainability certificates

RoHS



Keyboard


Built-in touchpad

Yes



Certificates


Certification

CE, FCC, PSE, UL, REACH



Operational conditions


Operating temperature (T-T)

0 - 40 -C


Storage temperature (T-T)

-20 - 60 -C



Ports & interfaces


Video port type

VGA



Power


Power consumption (typical)
W


Input current

1.5 A


AC adapter input voltage
0 - 240 V



Display


Contrast ratio (typical)

800:1


Display type

LCD


Viewing angle, vertical
0-


Colour depth

6 bit


Display brightness

300 cd/m-


Display diagonal

43.9 cm (17.3")


Viewing angle, horizontal
0-


Display resolution
20 x 1080 pixels


Aspect ratio
:9


Display number of colours

262144 colours


Display

TFT LCD


Pixel pitch

0.1989 x 0.1989 mm



Packaging data


Package height
5 mm


Package depth

765 mm


Package width

615 mm


Package weight
kg
