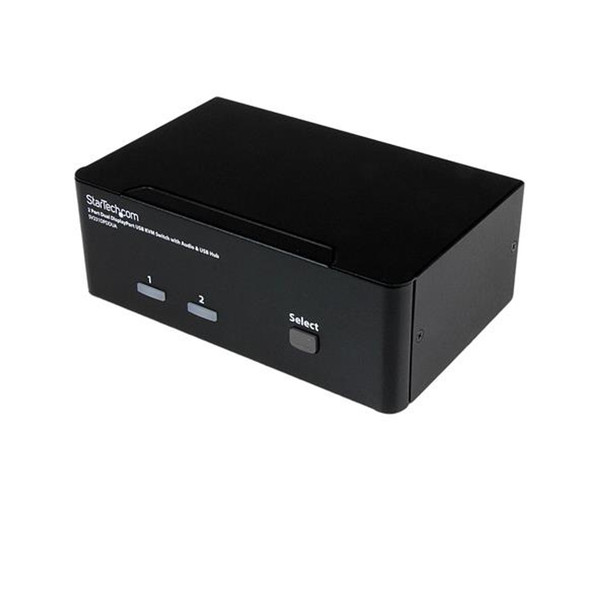

StarTech.com 2-Port Dual DisplayPort/USB KVM Switch with Audio and USB 2.0 Hub SV231DPDDUA

Control 2 high-resolution dual DisplayPort computers with a single console

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The StarTech.com Advantage

- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity

Features


Dual Native resolutions: 2560 x 1600 @ 60Hz, beyond 1080p on each monitor


Mac and PC Compatible


Supports a maximum resolution of 3840 x 2400 at lower refresh rates on each monitor


Supports native DisplayPort computer connections - no adaptor required


USB 2.0 peripheral sharing


Analog 2-channel audio and microphone supported with 3.5mm connections; 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface


No driver or software installation required


Small form factor design with connection ports situated on the rear panel


Supports DDC2B for monitor detection


Supports hot-plug, un-plug and link status-failure detection



Other features


IP control

No


Audio support

Yes



Ports & interfaces


USB connector type

USB Type-A


Audio connections

Yes


Keyboard port type

USB


Headphone outputs

3


Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A


DisplayPorts quantity

6


Number of computers controlled

2


Number of microphone inputs

3


Mouse port type

USB


Video port type

DisplayPort


DC-in jack

Yes


Console USB ports quantity

2


USB hub

Yes



Design


Push button

Yes


Product colour

Black


Hot keys

Yes


Rack mounting

No


Housing material

Steel


Certification

CE, FCC, REACH, TAA


LED indicators

Yes



Weight & dimensions


Height

57.5 mm


Width

161 mm


Depth

100 mm


Weight

734 g



Packaging content


Manual

Yes



Logistics data


Harmonized System (HS) code

85176200



Sustainability


Sustainability certificates

RoHS



Network


Ethernet LAN

No



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 80


Storage temperature (T-T)

20 - 60 �C



Performance


Maximum resolution

3840 x 2400 pixels


Audio channels

7.1


Number of users

1 user(s)


Hot-Plug support

Yes


HD type

4K Ultra HD


DDC2B support

Yes


Daisy chain

No



Power


AC input voltage

110 - 240 V


External power adapter

Yes


Output voltage

12 V


Power consumption (typical)

18 W


Power plug type

Type M


Input current

0.8 A


Compatible power plug types

AU, EU, UK, US


Output current

1.5 A



Display


Built-in display

No


On Screen Display (OSD)

No



Packaging data


Package height

100 mm


Package depth

187 mm


Package width

249 mm


Package weight

1.19 kg
