Startech

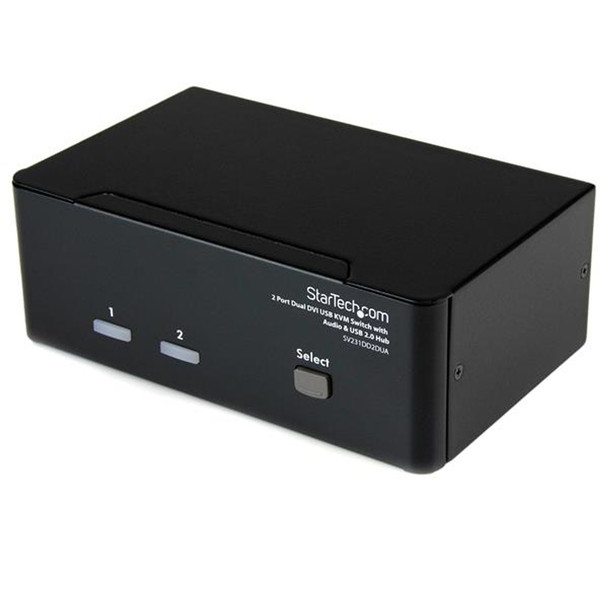

StarTech.com 2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub 2048 x 1536 SV231DD2DUA
- UPC:
- 65030835718
- MPN:
- SV231DD2DUA
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
Share a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers
The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Take full advantage of Dual head video cards by switching both machines across two high resolution DVI monitors
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Features
Audible tone confirms port switching
EDID settings retention
Front-panel push buttons
Keyboard hotkey control
Solid steel case
Status LEDs
Supports all USB-capable operating systems (Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS, etc.)
Supports resolutions up to 2048x1536 (Analog) and 1920x1200 (digital)
USB pass-through support, so USB thumb drives, external hard drives, or web cams can be shared among attached systems
User-configurable, simultaneous or independent switching of audio and USB hub ports or PC ports
Design
Product colour
Black
Certification
RoHS
Weight & dimensions
Weight
750 g
Logistics data
Harmonized System (HS) code
85176200
Other features
Ports quantity
2
Power supply type
5 AC
I/O ports
6x 24 pin DVI-I F 4x USB A F 2x USB B F
Connectivity technology
Wired
Dimensions (WxDxH)
0 x 100 x 57 mm
Compatible operating systems
Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS
Power requirements
9 V, 1.7 A
Operational conditions
Operating temperature (T-T)
0 - 40 -C
Operating relative humidity (H-H)
90 - 90
Storage temperature (T-T)
-20 - 60 -C
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Headphone outputs
4
Mouse port type
USB
Video port type
DVI-I
Performance
Maximum resolution
48 x 1536 pixels
Number of users
1 user(s)
Packaging data
Package height
72 mm
Package depth
6 mm
Package width
292 mm
Package weight
1.27 kg
View AllClose
The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Take full advantage of Dual head video cards by switching both machines across two high resolution DVI monitors
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Features
Audible tone confirms port switching
EDID settings retention
Front-panel push buttons
Keyboard hotkey control
Solid steel case
Status LEDs
Supports all USB-capable operating systems (Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS, etc.)
Supports resolutions up to 2048x1536 (Analog) and 1920x1200 (digital)
USB pass-through support, so USB thumb drives, external hard drives, or web cams can be shared among attached systems
User-configurable, simultaneous or independent switching of audio and USB hub ports or PC ports
Design
Product colour
Black
Certification
RoHS
Weight & dimensions
Weight
750 g
Logistics data
Harmonized System (HS) code
85176200
Other features
Ports quantity
2
Power supply type
5 AC
I/O ports
6x 24 pin DVI-I F 4x USB A F 2x USB B F
Connectivity technology
Wired
Dimensions (WxDxH)
0 x 100 x 57 mm
Compatible operating systems
Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS
Power requirements
9 V, 1.7 A
Operational conditions
Operating temperature (T-T)
0 - 40 -C
Operating relative humidity (H-H)
90 - 90
Storage temperature (T-T)
-20 - 60 -C
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Headphone outputs
4
Mouse port type
USB
Video port type
DVI-I
Performance
Maximum resolution
48 x 1536 pixels
Number of users
1 user(s)
Packaging data
Package height
72 mm
Package depth
6 mm
Package width
292 mm
Package weight
1.27 kg
