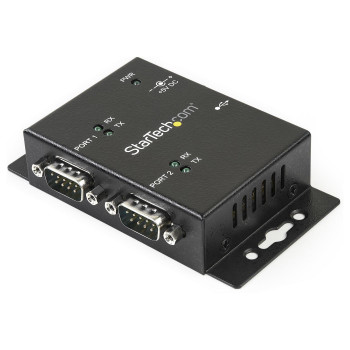

StarTech.com 2 Port Industrial Wall Mountable USB to Serial Adaptor Hub with DIN ICUSB2322I

Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required

Features


USB to 2-Port Straight-Through RS232 Serial Adapter


Wall-mountable, with included DIN Rail clips


Rugged metal construction


COM Port assignments maintained across reboot


Baud Rate up to 921.6 Kbps


Powered by an available USB port - no external power adaptor required


Optional DC jack power connection



Weight & dimensions


Height

24 mm


Width

66 mm


Depth

104 mm


Weight

162 g



Packaging content


Cables included

USB


DIN rail kit included

Yes


Manual

Yes


Drivers included

Yes



Logistics data


Master (outer) case width

444 mm


Master (outer) case height

364 mm


Products per master (outer) case

45 pc(s)


Master (outer) case length

525 mm


Harmonized System (HS) code

84719000



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Other features


Chipset

FTDI - FT232RL



Features


Product colour

Black


Housing material

Steel


LED indicators

Activity



Operational conditions


Operating temperature (T-T)

0 - 55 �C


Operating relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-20 - 85 �C



Ports & interfaces


Host interface

USB 2.0 Type-B


Ports quantity

2


Hub interfaces

Serial


RS-232 ports

2



Performance


Data bits

7, 8


Parity bit

Even, Mark, No, Odd, Space


Baud rate

921.6 Kbit/s


Stop bits

1, 2


FIFO (First In, First Out)

256 B



System requirements


Other operating systems supported

Windows XP Embedded


Linux operating systems supported

Yes


Compatible operating systems

Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x



Packaging data


Package height

41 mm


Quantity per pack

1 pc(s)


Package depth

214 mm


Package width

145 mm


Package weight

400 g
