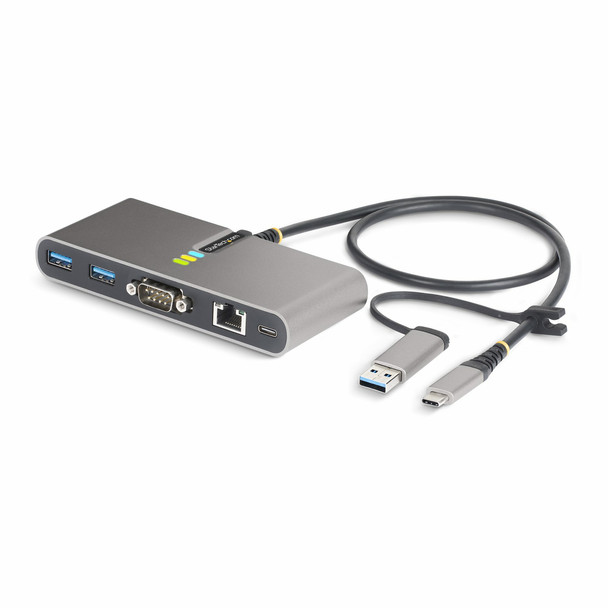

StarTech.com 2-Port USB-C Hub with Ethernet and RS-232 Attached USB-C to USB-A D 5G2A1SGBB-USB-C-HUB

Add a unique combination of serial, USB and Ethernet ports to your laptop or PCThis USB Type-C Hub with RS-232 Serial, Gigabit Ethernet, and 100W USB-C Power Delivery Pass-Through adds two USB 3.2 Gen 1 (5Gbps) Type-A ports to a USB enabled computer. The attached 2ft (60cm) USB-C host cable includes a tethered USB-C to USB-A adapter that enables the USB Hub to easily connect to both USB-A and USB-C host computers.RS-232 SerialThe USB Hub adds an RS-232 serial DB/DE-9M (male) connector to a desktop or laptop. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.Gigabit EthernetThe USB hub features a Gigabit Ethernet Network Interface Controller (NIC). The Ethernet adapter is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.USB Power Delivery Pass-ThroughThis USB hub features 100W USB Power Delivery 3.0 pass-through (85W laptop charging). Connect a power source to the USB-C PD pass-through port to power the connected host device. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).The USB hub features Overcurrent Protection (OCP) for added protection to the USB hub and any connected devices. OCP prevents faulty USB peripherals from drawing more power than is safely allocated.Plug and PlayThis device is compatible with most major operating systems, including Windows, macOS, and Linux. The Hub is automatically detected, configured, and installed upon connection to a host computer.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:-USB Event Monitoring Utility: Track and log connected USB devices.-MAC Address Pass-Through Utility: Improve network security.-Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-toolsThe StarTech.com Advantage

Features


2-PORT USB-C HUB: Portable USB 5Gbps expansion hub features a built-in 2ft USB-C host cable & attached USB-C to USB-A dongle; 2-Port USB Type-A (5Gbps) Hub; Overcurrent Protection; 1x RS-232 Serial Adapter (FTDI); 1x Gigabit Ethernet; 100W PD Pass-Through


RS-232 SERIAL: RS232 serial adapter with FTDI chip and COM retention; USB Enumeration/Transmit/Receive LEDs offer real-time port activity; Max Baud Rate: 115.2 Kbps; 256 Byte FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits


GIGABIT ETHERNET: Built-in GbE converter to provide the reliability and security of wired Ethernet to a laptop or desktop; GbE controller is fully compatible with IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging; 10/100/1000 Mbps


RELIABLE PERFORMANCE: Connect an external USB-C power adapter for 100W Power Delivery 3.0 pass through; 15W is reserved for the adapter to avoid device dropouts or power overdraw that's common in other hubs; Up to 85W for laptop charging


OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams; USB Event Monitoring logs/timestamps USB port usage enabling admins to identify potentially malicious devices, MAC Address Cloning & WIFI Auto Switch Utilities



Other features


Chipset

VIA - VL817-Q7, VIA - VL103-Q4, ASIX - AX88179A, FTDI - FT232RL



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


USB Power Delivery

Yes


Microphone in

No


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Serial ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-C ports quantity

1


USB Power Delivery up to
0 W


Connectivity technology

Wired



Weight & dimensions


Height
mm


Width
8 mm


Depth

55 mm


Weight
5 g



Packaging content


Quick start guide

Yes


Interface adapters included

USB Type-A male - USB Type-C female



Logistics data


Master (outer) case width

605 mm


Master (outer) case height

385 mm


Products per master (outer) case

80 pc(s)


Master (outer) case length

325 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Technical details


Compliance certificates

CE, RoHS



Network


Wake-on-LAN ready

Yes


Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Jumbo frames

9000


VLAN tagging

Yes


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Auto MDI/MDI-X

Yes


Jumbo frames support

Yes


Ethernet LAN data rates
,100,1000,2000 Mbit/s



Software


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022


Other operating systems supported

Windows XP Embedded


Linux operating systems supported

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 -C


Operating relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 -C



Performance


Data transfer rate

5 Gbit/s


Colour name

Space Gray


Product colour

Grey


Card reader integrated

No


LED indicators

Yes


UASP support

Yes



Power


Power consumption (max)
W



Packaging data


Package height

30 mm


Package depth
0 mm


Package width
2 mm


Package weight
0 g
