StarTech.com 20 " Slimline SATA to SATA with LP4 Power Cable Adaptor SLSATAF20

Connect a slimline SATA drive to a standard SATA motherboard connector.

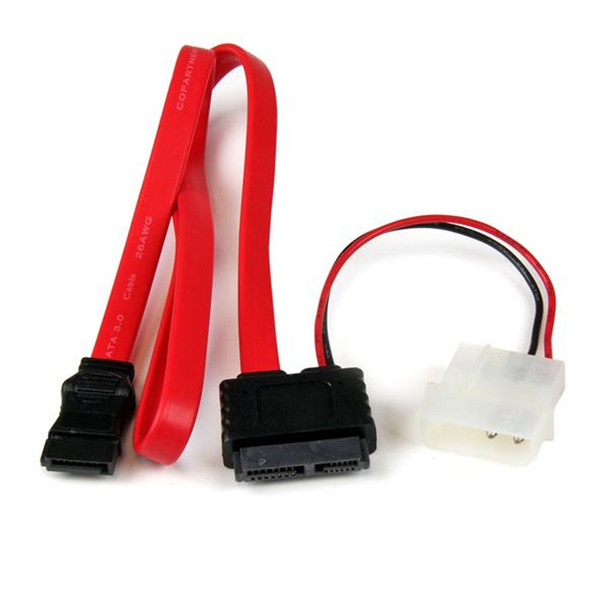

The SLSATAF20 Slimline SATA to SATA with LP4 Power Cable (20-inch) features a SATA data receptacle and a LP4 power connection on one end, and a Slimline Serial ATA receptacle on the other - allowing you to connect a slim SATA drive to a computer motherboard that does not have a Slimline connection available.

Supporting full SATA 3.0 bandwidth of up to 6Gbps when used with SATA 3.0 compliant drives, this innovative adapter cable provides you with the connections needed to simplify the migration to Slimline SATA-equipped drives.

Constructed of only top quality materials and designed for optimum performance and reliability the SLSATAF20 is backed by our lifetime warranty.

The StarTech.com Advantage

- Cost-effective solution for connecting a Slimline SATA drive to a SATA equipped computer motherboard
- Features a thin cable design, which helps reduce clutter and increase airflow within the computer/server case, for optimum system performance
- Backed by StarTech.com lifetime warranty, ensuring a dependable connection

Features


1x SATA connector


1x Molex (LP4) power connector


1x Slimline SATA connector


Supports full SATA 3.0 6Gbps bandwidth


Compatible with Slimline SATA optical drives


Provides 20 in cable length



Logistics data


Harmonized System (HS) code

84733080



Technical details


Sustainability certificates

RoHS



Features


Cable type

SATA III


Connector 1 form factor

Straight


Connector gender

Female/Female


Connector 2 form factor

Straight


Cable length

0.508 m


Product colour

Red


Connector 2

SATA 7-pin + Molex (4-pin)


Connector 1

SATA 13-pin


Maximum data transfer rate

6 Gbit/s


Weight

22 g


Certification

CE, REACH



Packaging data


Package height

184 mm


Package depth

50 mm


Package width

10 mm


Package weight

22 g
