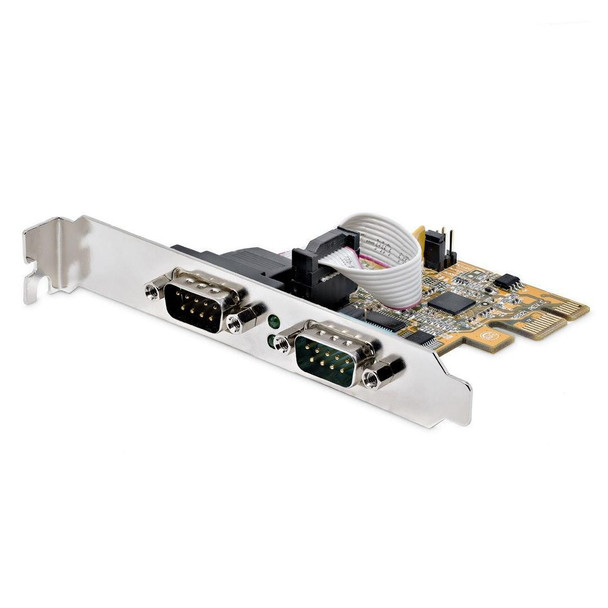

StarTech.com 21050-PC-SERIAL-LP 2-Port Pci Express Serial 21050-PC-SERIAL-LP

Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to a Small Form Factor (SFF) or full-size system, using this two-port serial card. RS-232 (DB9) support enables control and communication with serial peripheral devices.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.21050-PC-SERIAL-LP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Design



Internal



Yes


LED indicators



Activity


Product colour



Yellow


Features



Baud rate



921.6 Kbit/s


Chipset



ASIX - AX99100, ASIX - ZT3243LFEY


Data bits



5, 6, 7, 8, 9


FIFO (First In, First Out)



256 B


Parity bit



Even, Mark, N, No, Odd, Space


Logistics data



Master (outer) case height



34 cm


Master (outer) case length



44 cm


Master (outer) case width



53 cm


Products per master (outer) case



50 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 °C


Storage temperature (T-T)



-40 - 75 °C


Other features



Material



Steel


Package dimensions



Depth (package,cm)



14.4 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.8 cm


Width (package,cm)



20.7 cm


Packaging data



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Expansion card standard



PCI 2.0


Host interface



PCIe


Output interface



Serial


Serial interface type



RS-232


Serial ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



0.21 cm


Product Height



0.04 cm


Product Width



0.14 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
