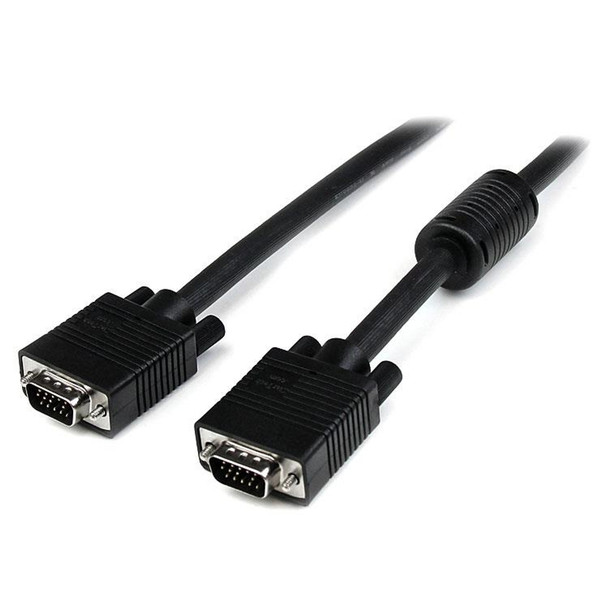

StarTech.com 2m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M MXTMMHQ2M

Connect your VGA monitor with the highest quality connection available
The MXTMMHQ2M High Resolution VGA Cable (2-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty

Features


Triple coaxial + twisted-pair wire for crystal clear display


Durably constructed cable, with high quality HD15 connectors


Impedance matched at 75 Ohms for full brightness and vibrant picture colour from your VGA monitor


High quality VGA connectors with moulded PVC strain relief



Weight & dimensions


Package height

52 mm


Package depth

220 mm


Package width

200 mm


Package weight

300 g


Weight

275 g



Logistics data


Harmonized System (HS) code

84733080



Technical details


Sustainability certificates

RoHS



Features


Quantity per pack

1 pc(s)


Supported graphics resolutions

1920 x 1200 (WUXGA)


Cable length

2 m


Product colour

Black


Cable jacket material

Polyvinyl chloride (PVC)


Connector 2

VGA (D-Sub)


Connector 1

VGA (D-Sub)


Connector 1 gender

Male


Connector 2 gender

Male


Connector contacts plating

Nickel


AWG wire size

28


Certification

CE, REACH


Cable shielding

Aluminum mylar foil


Connector 1 form factor

Straight


Number of conductors

14


Cable rating

CMG (CM)


Connector 2 form factor

Straight


Impedance

75 ?


Plug and Play

Yes



Operational conditions


Operating temperature (T-T)

0 - 60 �C


Operating relative humidity (H-H)

0 - 80


Storage temperature (T-T)

-20 - 80 �C
