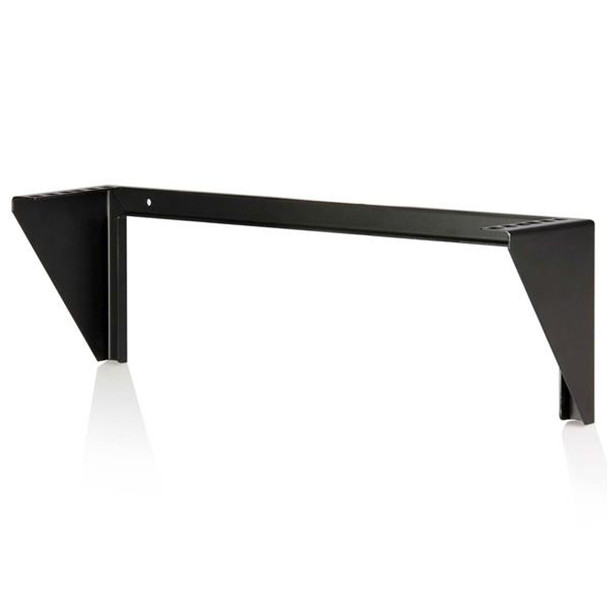

StarTech.com 2U 19 " Steel Vertical Rack and Wall Mountable Server Rack RK219WALLV

The RK219WALLV 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 2U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.

Backed by a StarTech.com Lifetime Warranty.

Need more storage space? StarTech.com also offers a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.

The StarTech.com Advantage
- Units arrive assembled with all the accessories required to mount equipment into the rack for a quick and easy setup
- Lightweight vertical wall mount rack design produces a cost effective space saving solution for your IT and AV equipment

Features


VERSATILE FUNCTIONALITY: This multi-use 2U vertical patch panel bracket enables you to mount your server, data, networking or AV equipment vertically on a wall or horizontally under a desk for added versatility


STURDY DESIGN: Constructed to EIA-310 19in rack standards, the black wall mount patch panel bracket features a solid steel design for ultimate durability; the rack can hold up to 125.3lb (56.7kg) to ensure your equipment is secure


NO ASSEMBLY REQUIRED: The open frame, L-shaped rack arrives fully assembled with cage screws for mounting equipment and 1 �" screws for mounting the rack to wood surfaces; it's a convenient solution for all your SoHo (small office/home office) rack needs


STANDARDIZED HOLE SIZING: The wall mounting holes on the 2U vertical mountable rack bracket are 16" center to center to provide greater stability and match standard wall studs; it works with most 19" rack mountable equipment for ultimate compatibility


THE IT PRO'S CHOICE: Designed and built for IT Professionals, this patch panel bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance



Weight & dimensions


Size (imperial)

48.3 cm (19")


Height

105 mm


Width

504 mm


Depth

151 mm


Weight

748.7 g


Inner width

45 cm



Logistics data


Harmonized System (HS) code

85381000



Technical details


Sustainability certificates

RoHS



Other features


Compliance industry standards

EIA/ECA-310-E



Features


Type

Wall mounted rack


Product colour

Black


Frame type

Open


Maximum weight capacity

56.7 kg


Material

Steel


Product design

2-post


Rack capacity

2U


Certification

CE, REACH, TAA


Mounting hole shape

Square



Packaging data


Package height

116 mm


Package depth

533 mm


Package width

168 mm


Mounting kit

Yes


Package weight

1.2 kg


Manual

Yes


Wall mounting kit

Yes


Nuts included

Yes


Number of screws

14


Number of nuts

8


Screws included

Yes
